Product Code/SKU
Code
0025000258
Descriptions

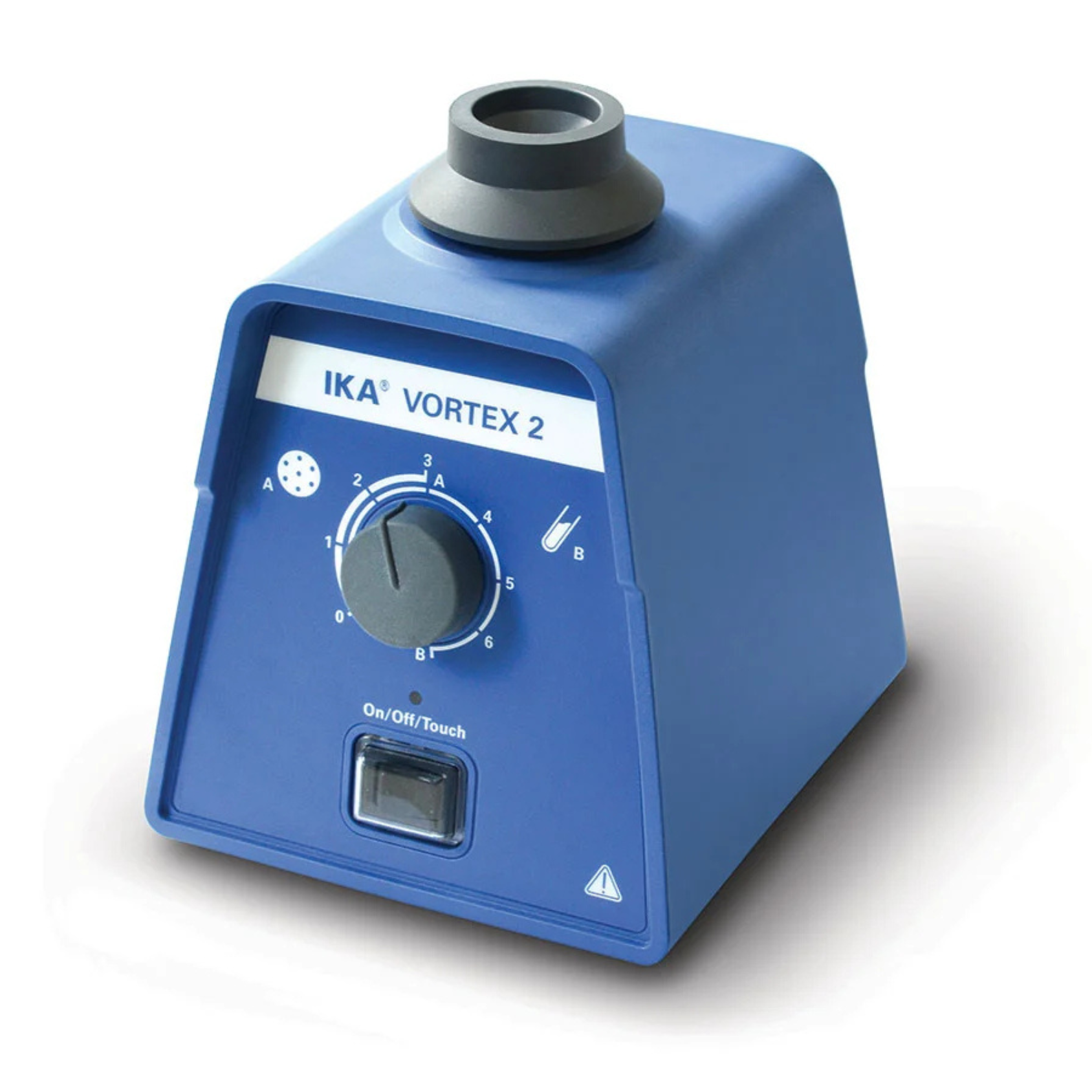

Vortex shaker suitable for touch operation or continuous operation. Various applications possible because of 3 interchangeable attachments and 7 inserts (e.g. tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.), these need to be ordered separately.
Scope of delivery
- VORTEX 2
- VG 3.1 Standard attachment
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Type of movement | orbital |
| Shaking stroke | 4 mm |
| Permissible shaking weight (incl. attachment) | 0.4 kg |
| Motor rating input | 39 W |
| Motor rating output | 9 W |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 500 rpm |
| Speed max | 2500 rpm |
| Speed display | scale |
| Speed adjustment | scale 0 - 6 |
| Operating mode | continuous operation |
| Touch function | yes |
| Dimensions (W x H x D) | 120 x 140 x 138 mm |
| Weight | 3.9 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 200 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 60 W |
