Descriptions

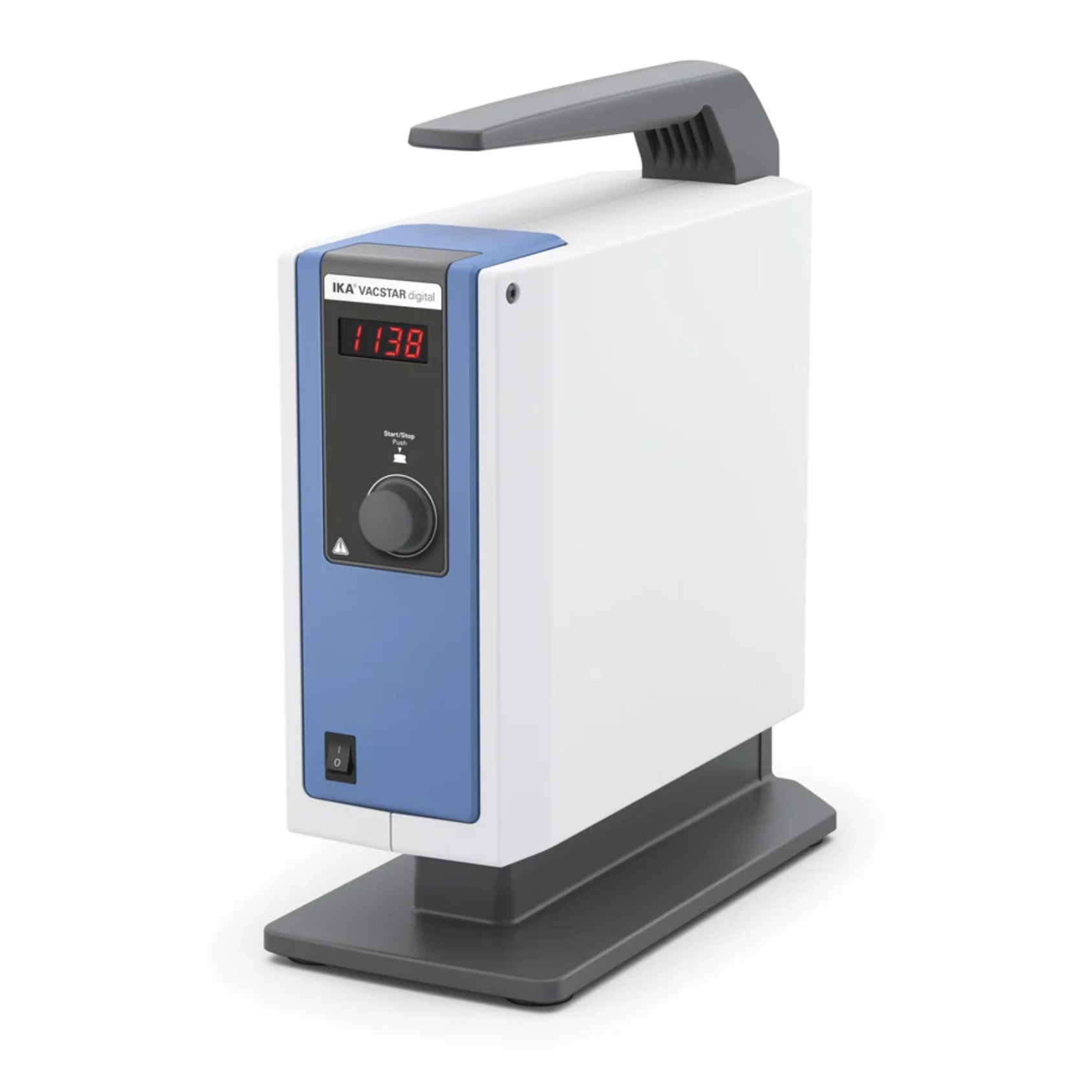

The four-chamber membrane vacuum pump convinces with its high suction capacity, low space requirement and high serviceability. The setting of the parameters is carried out through a rotary-push button over a digital display showing current rpm.
Scope of delivery
- Vacuum hose (1 m)
- Silencer
- USB A-B Cable
- connecting cable
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Pump rate max. (50/60Hz) | 1.32 m³/h |
| Pump rate max. (50/60Hz) | 22 l/min |
| Final pressure without gas ballast | 2 mbar |
| Suction levels | 4 |
| Cylinder | 4 |
| Connection diameter suction side | 8 mm |
| Connection diameter pressure side | 8 mm |
| Input pressure | 2 - 1030 mbar |
| Two-point control | yes |
| Analog speed vacuum control | yes |
| Speed adjustment | Turning knob |
| Speed range | 285 – 1200 rpm |
| Display | LED |
| Noise at low. pressure | 54 dB(A) |
| Material in contact with medium | Al2O3; PTFE; FFPM; PPS; NBR |
| Housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 150 x 375 x 370 mm |
| Weight | 11.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Analog input | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 130 W |
| Power input standby | 3 W |
