Product Code/SKU
Code
0020109375
Descriptions

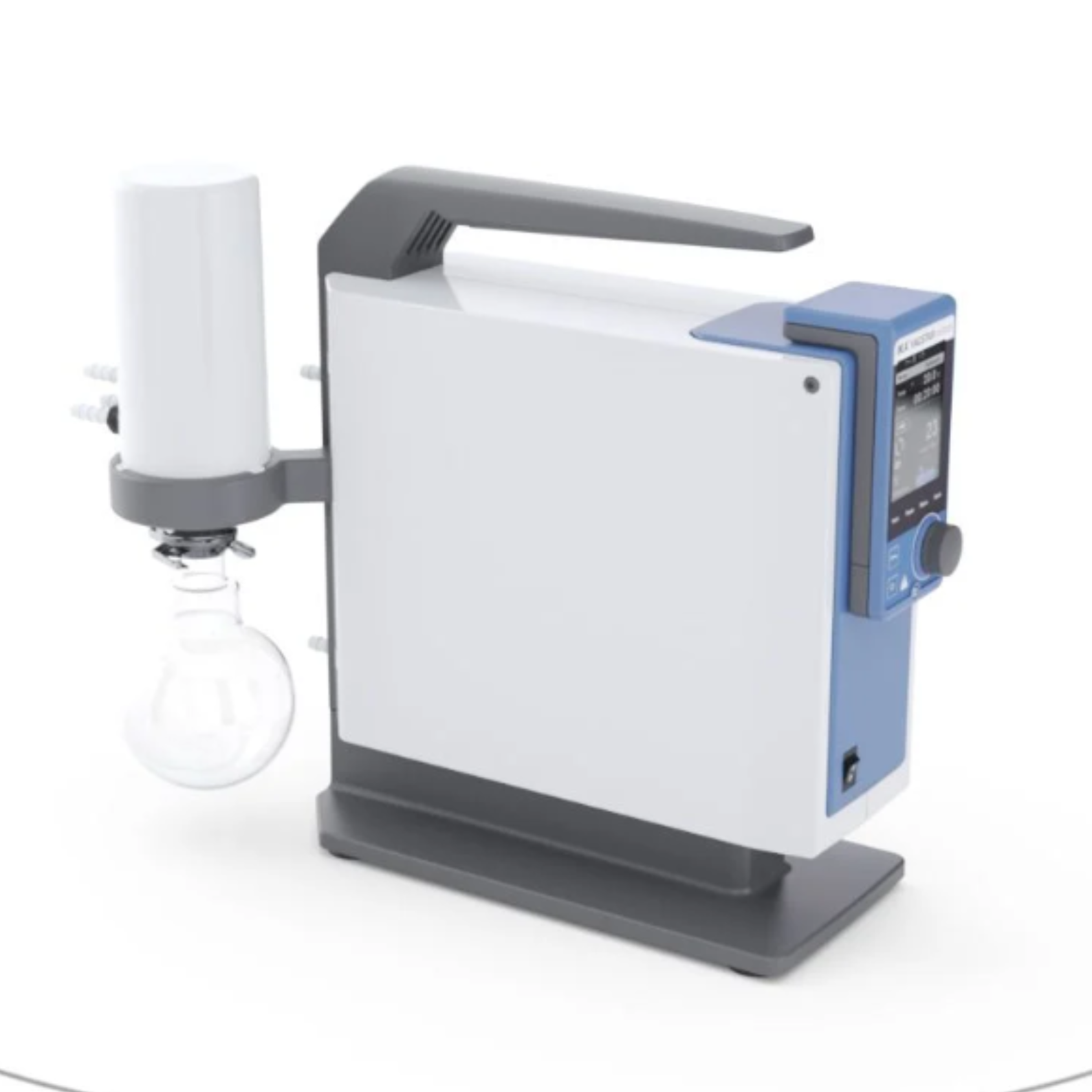

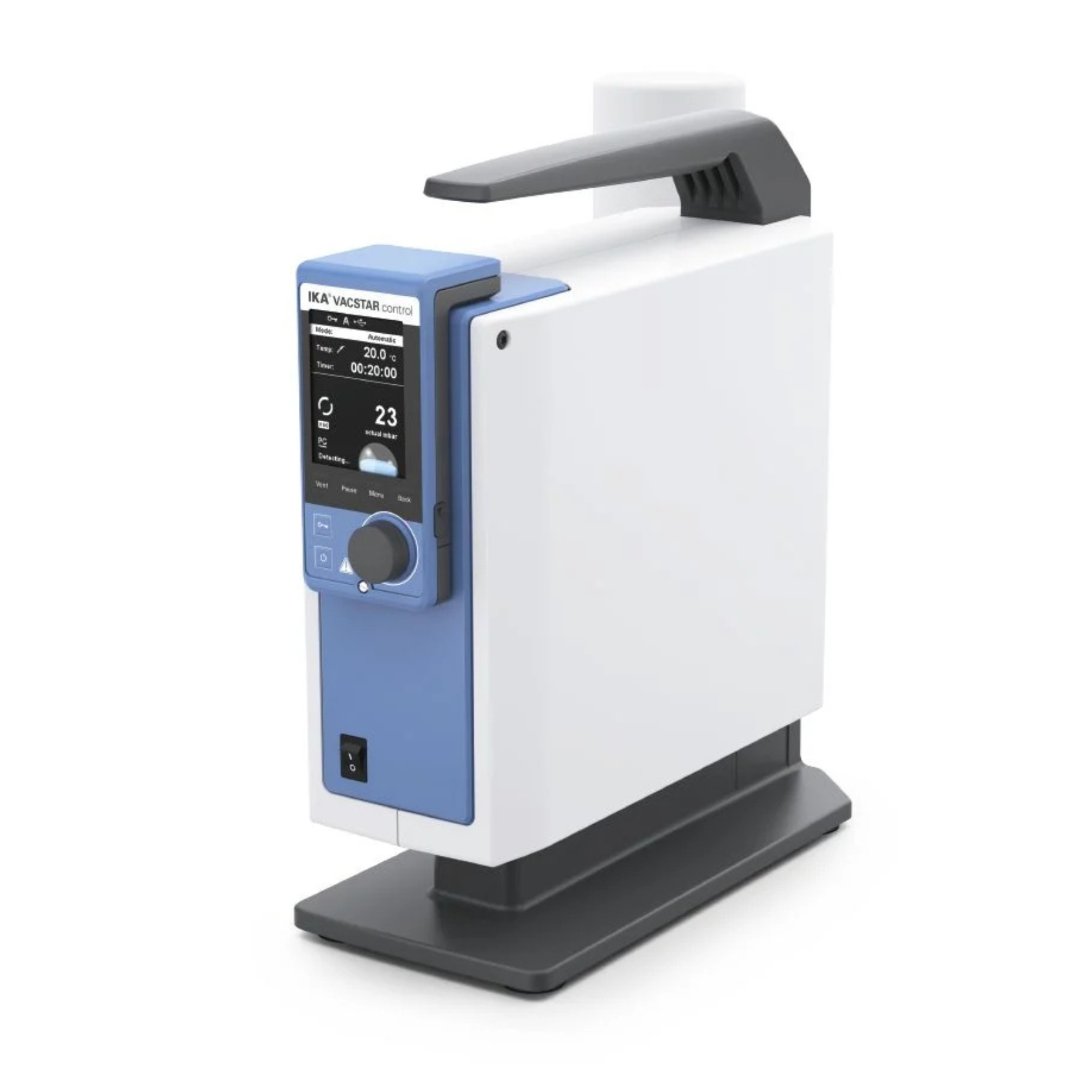

Separation, filtration, removal: The VACSTAR dry 4-chamber membrane vacuum pump is powerful, resistant to chemicals and low-maintenance. VACSTAR control is the ideal system with its integrated vacuum controller and removable display. The controller offers a suitable mode for the desired process: from automatic to manual operation, right through to pumping or an evacuation and cleaning function. VACSTAR has an excellent suction performance, with its 22 l/min at a minimum of 2 mbar.
Scope of delivery
- WiCo VACSTAR control
- Vacuum hose (1 m)
- WH11
- OS 1.0 WiCo power supply unit
- USB Cable - USB A to Micro-B, 2 m
- USB A-B Cable
- Screw driver
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Pump rate max. (50/60Hz) | 1.32 m³/h |
| Pump rate max. (50/60Hz) | 22 l/min |
| Final pressure without gas ballast | 2 mbar |
| Suction levels | 4 |
| Cylinder | 4 |
| Connection diameter suction side | 8 mm |
| Connection diameter pressure side | 8 mm |
| Input pressure | 2 - 1030 mbar |
| Boiling point detection | yes |
| Solvent library | yes |
| Analog speed vacuum control | yes |
| Speed adjustment | Turning knob |
| Speed range | 285 – 1200 rpm |
| Display | TFT |
| Pressure unit / scale | mbar, hPa, mmHg, Torr |
| Vacuum sensor | yes |
| Vacuum sensor type | ceramic Al2O3 |
| Pressure max. for pressure sensor | 1.2 bar |
| Measurement range (absolute) min. | 1 mbar |
| Measurement range (absolute) max. | 1030 mbar |
| Control range min. | 1 mbar |
| Control range max. | 1030 mbar |
| Resolution pressure | 1 mbar |
| Measurement uncertainty | 1 mbar |
| Venting valve | yes |
| Condensate trap | yes |
| Emission condenser | yes |
| Timer | yes |
| Noise at low. pressure | 54 dB(A) |
| Material in contact with medium | Al2O3; PTFE; FFPM; PPS; NBR |
| Housing material | alu-cast coating / thermoplastic polymer |
| Mode automatic | yes |
| Mode manual | yes |
| Mode pump % | yes |
| Mode program | yes |
| Dimensions (W x H x D) | 270 x 435 x 500 mm |
| Weight | 14 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Analog input | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 140 W |
| Power input standby | 1.5 W |
