Product Code/SKU
Code
0010013297
Descriptions

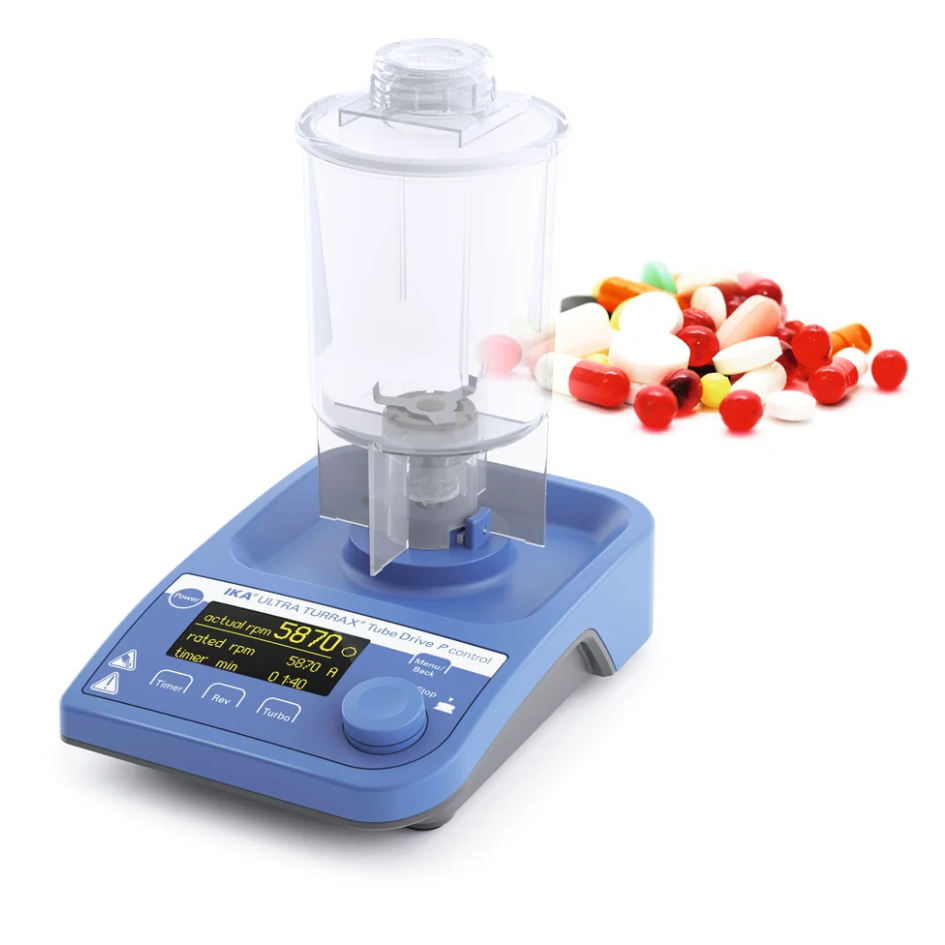

Single-Use Crushing UTTD control Pharma Solution
Crushing and dissolving of tablets for subsequent analysis. Many standardized test procedures in the pharmaceutical industry, such as the pharmacopoeia tests described in official compendia (United States Pharmacopeia (USP 905), European Pharmacopoeia (PhEur 2.9.40), etc.), require the crushing and dissolution of tablets as a first step before further analysis. The challenges in sample preparation include the avoidance of cross-contamination between sample batches, time-consuming cleaning and the often small sample quantities. The UTTD control Pharma Solution has been specially developed by the IKA product experts to overcome these challenges.
Scope of delivery
- ULTRA-TURRAX® Tube Drive P control
- DIS-300-S-M.10 Dissolver tube, 300 ml, 10 pcs.
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Motor rating input | 36 W |
| Motor rating output | 28 W |
| Speed display | OLED |
| Speed range | 400 - 8000 rpm |
| Viscosity max. | 5000 mPas |
| Timer | yes |
| Timer display | OLED |
| Speed deviation | 3 % |
| Speed adjustment | 10 RPM Steps |
| Noise without element | 50 dB(A) |
| Process type | batch |
| Reversible direction of rotation | yes |
| Dimensions (W x H x D) | 122 x 54 x 178 mm |
| Weight | 1.3 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| USB interface | USB-B |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 36 W |
| DC Voltage | 24 V= |
| Current consumption | 1500 mA |
