Product Code/SKU
Code
0020007144
Descriptions

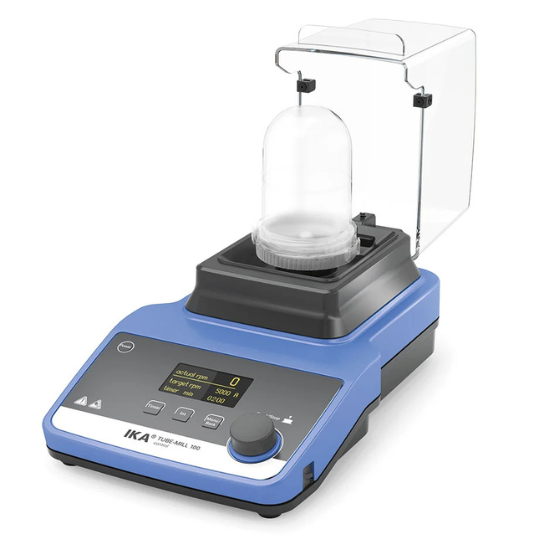

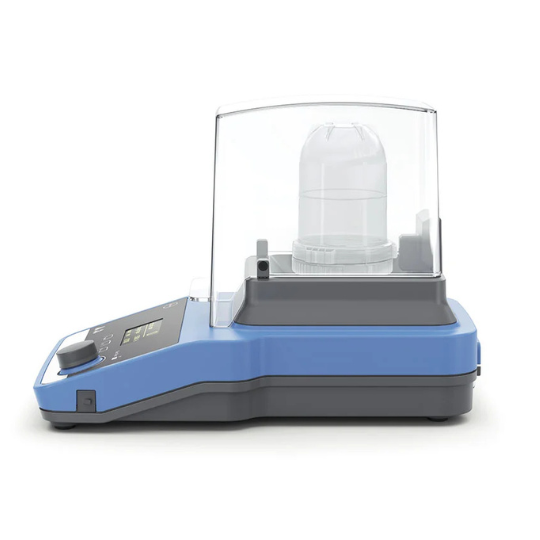

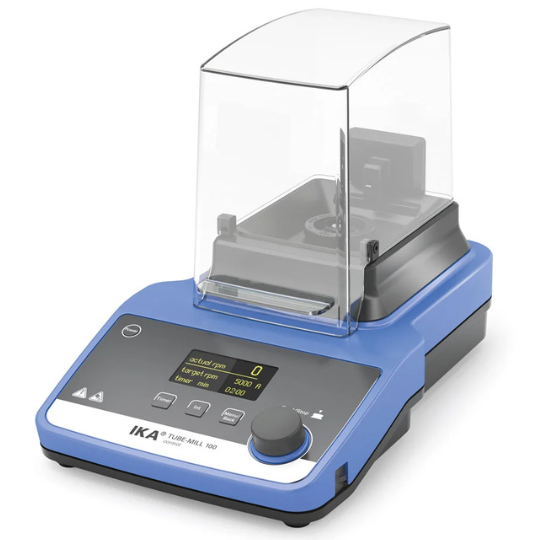

The Tube Mill 100 control accommodates larger grinding chambers with a maximum volume of 100 ml (MT 100) . The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time. The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials. It is especially suitable for grinding seeds, such as corn and wheat.
Scope of delivery
- MT 100 milling tube, 100 ml
- MT 40 milling tube, 40 ml
- MMT 40.1 Multi-use milling tube
- Coupling extractor
- USB A-B Cable
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Motor rating input | 100 W |
| Motor rating output | 80 W |
| Speed range | 5000 - 25000 rpm |
| Process type | batch |
| Circumferential speed max. | 65 m/s |
| Useable volume max. | 100 ml |
| Feed hardness max. | 5 Mohs |
| Feed grain size max. | 10 mm |
| Power-ON time | 3 min |
| Mill feed can be cooled in milling chamber with dry ice | yes |
| Operating principle | cutting/impact |
| Speed deviation | ±2 % |
| Dimensions (W x H x D) | 180 x 212 x 300 mm |
| Weight | 2.8 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| USB interface | USB-B |
| Voltage | 220 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 100 W |
