Product Code/SKU
Code
0003725000
Descriptions

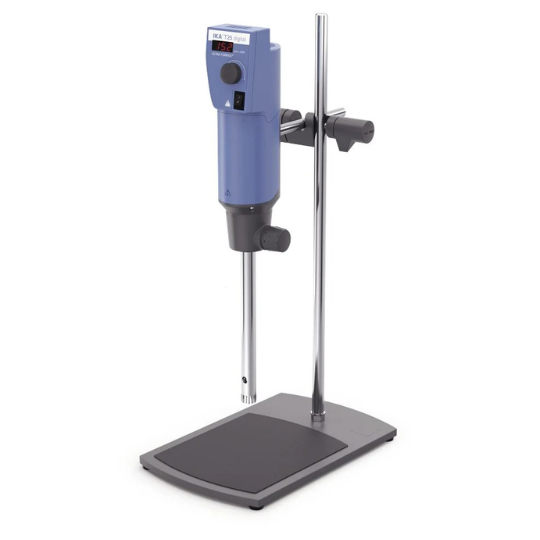

LAB Scale Dispersers T25 digital ULTRA Turrax
Crushing dispersers are versatile tools used in various industries for tasks like homogenizing, emulsifying, suspending, and particle reduction. They are particularly effective in breaking down materials into finer particles or mixing substances evenly. Common applications include:
- Laboratory Use: Preparing samples for analysis, such as effluent homogenization or PCR analysis.
- Industrial Processes: Crushing and dispersing materials under vacuum pressure or high temperatures.
- Pharmaceuticals: Dissolving tablets and ensuring sterility in sample preparation.
High-performance dispersing instrument for volumes from 1 – 2000 ml (H2O) with digital speed display. It offers a wide speed range from 3000 – 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters.
Scope of delivery
- T 25 digital ULTRA-TURRAX®
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Motor rating input | 800 W |
| Motor rating output | 500 W |
| Volume range (H2O) | 0.001 – 2 l |
| Viscosity max. | 5000 mPas |
| Speed range | 3000 - 25000 rpm |
| Speed deviation | 1 % |
| Speed display | stepless |
| Speed adjustment | LED |
| Noise without element | 75 dB(A) |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Process type | batch |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 87 x 271 x 106 mm |
| Weight | 2.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) |
| Protection class according to DIN EN 60529 | IP 20 |
| Voltage | 220 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 800 W |
