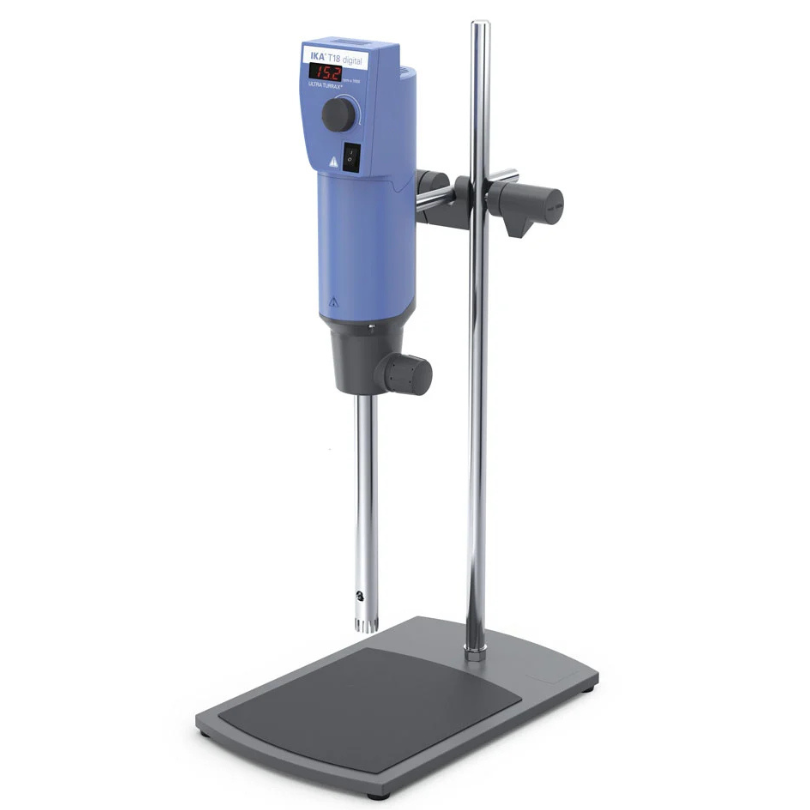

LAB Scale Dispersers T18 Digital Package Ultra Turrax
Crushing dispersers are versatile tools used in various industries for tasks like homogenizing, emulsifying, suspending, and particle reduction. They are particularly effective in breaking down materials into finer particles or mixing substances evenly. Common applications include:
- Laboratory Use: Preparing samples for analysis, such as effluent homogenization or PCR analysis.
- Industrial Processes: Crushing and dispersing materials under vacuum pressure or high temperatures.
- Pharmaceuticals: Dissolving tablets and ensuring sterility in sample preparation.
Scope of delivery :
- T 18 digital ULTRA-TURRAX®
- S 18 N - 19 G Dispersing tool
- R 1826 Plate stand
- R 182 Boss head clamp
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Motor rating input | 500 W |
| Motor rating output | 300 W |
| Volume range (H2O) | 0.001 - 1.5 l |
| Viscosity max. | 5000 mPas |
| Speed range | 3000 - 25000 rpm |
| Speed deviation | 1 % |
| Speed adjustment | stepless |
| Speed display | LED |
| Noise without element | 75 dB(A) |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Process type | batch |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 87 x 271 x 106 mm |
| Weight | 2.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) Protection class according to DIN EN 60529 IP 20 |
| Voltage | 220 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 500 W |
