Product Code/SKU
Code
0025005828
Descriptions

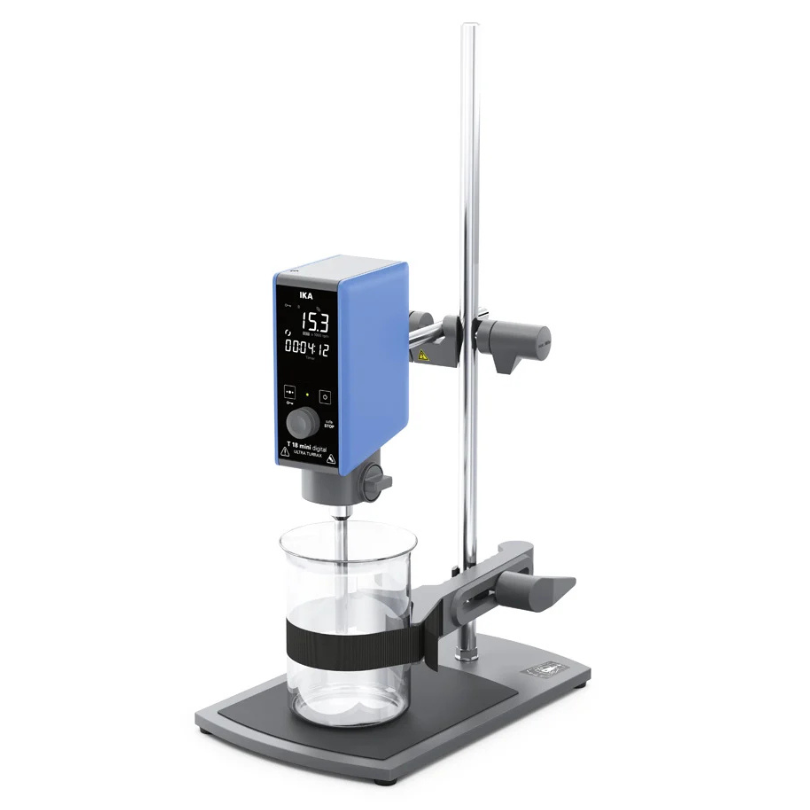

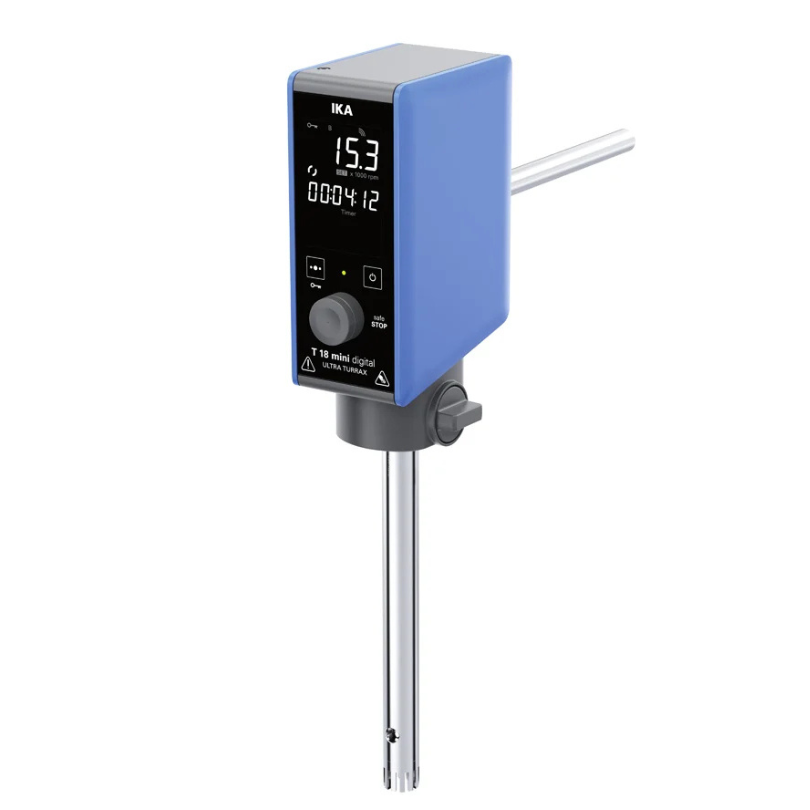

Compact Lab Scale Dispersers T 18 mini digital ULTRA-TURRAX
Crushing dispersers are versatile tools used in various industries for tasks like homogenizing, emulsifying, suspending, and particle reduction. They are particularly effective in breaking down materials into finer particles or mixing substances evenly. Common applications include:
- Laboratory Use: Preparing samples for analysis, such as effluent homogenization or PCR analysis.
- Industrial Processes: Crushing and dispersing materials under vacuum pressure or high temperatures.
- Pharmaceuticals: Dissolving tablets and ensuring sterility in sample preparation.
T 18 mini digital is an economical high-performance dispersing instrument with a wide speed range of 3000 - 25,000 rpm for working volumes of up to 1.5 liters (H20).
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Motor rating input | 210 W |
| Motor rating output | 160 W |
| Volume range (H2O) | 0.001 - 1.5 l |
| Viscosity max. | 2000 mPas |
| Speed range | 3000 - 25000 rpm |
| Speed deviation | 3 % |
| Speed display | LED |
| Speed adjustment | stepless |
| Noise without element | 75 dB(A) |
| Motor principle | Brushless DC |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Process type | batch |
| Timer | yes |
| Timer display | LED |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 66 x 186 x 100 mm |
| Weight | 1.8 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| USB interface | USB-C |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 210 W |
| Power input max. | 250 W |
| Power input standby | 3 W |
| DC Voltage | 48 V= |
| Current consumption | 4500 mA |
