Product Code/SKU
Code
0010012325
Descriptions

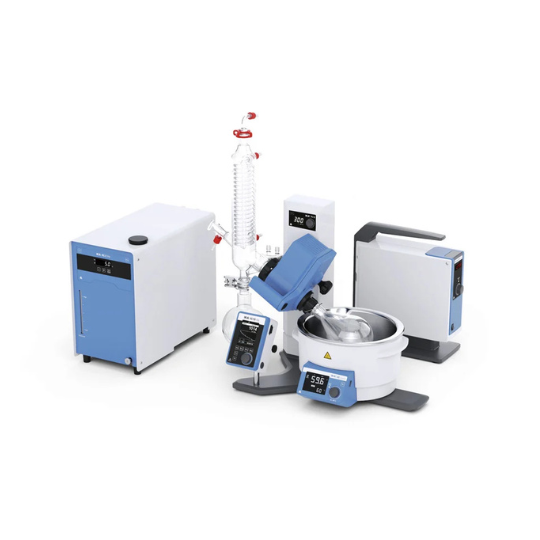

The RV 8 pro V-C Complete package is the complete solution for your rotary evaporator setup.
In addition to the RV 8 V-C rotary evaporator, the package includes the HB digital heating bath with a capacity of 4 liters and a heating temperature range of RT to 180 °C, a highly efficient coated vertical glass condenser set with 1L receiver and evaporator flask, as well as the VACSTAR digital vacuum pump with VC 10 lite vacuum controller and the RC 2 lite recirculating chiller. All components and connections required for operation are included.
Scope of delivery :
- RV 8 FLEX
- RV 10.10 Glassware vertical coated
- VC 10 lite
- VACSTAR digital
- RV 8.3 Stand pole
- RC 2 lite
- RV 10.5005 Set of hoses
- PC 1.3 Cable
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Type of cooling | vertical |
| Cooling surface | 1500 cm2 |
| Coating | yes |
| Motor principle | DC |
| Speed range | 5 - 300 rpm |
| Speed tolerance set rotation speed < 100rpm | ±1 rpm |
| Speed tolerance set rotation speed > 100rpm | ±1 % |
| Lift | manual |
| Stroke | 120 mm |
| Heating temperature range | room temp. - 180 °C |
| Heat output | 1400 W |
| Set temperature resolution | 1 K |
| Filling volume max. | 4 l |
| Dimensions (W x H x D) | 510 x 490 x 345 mm |
| Weight | 25.76 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 1500 W |
| DC Voltage | 24 V= |
