Product Code/SKU
Code
0010012326
Descriptions

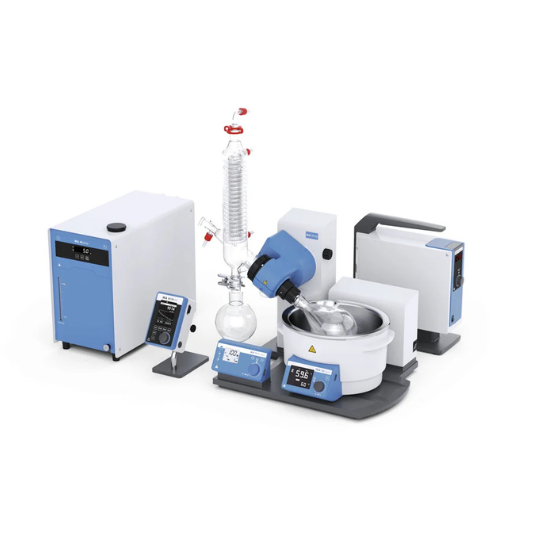

The RV 10 digital pro V-C Complete package is the complete solution for your rotary evaporator setup.
In addition to the RV 10 digital V-C rotary evaporator, the package includes the HB digital heating bath with a capacity of 4 liters and a heating temperature range of RT to 180 °C, a highly efficient vertical coated glass condenser set with 1L receiver and evaporator flask, as well as the VACSTAR digital vacuum pump with VC 10 lite vacuum controller and the RC 2 lite recirculating chiller. All components and connections required for operation are included.
Scope of delivery :
- RV 10 digital FLEX
- RV 10.10 Glassware vertical coated
- VC 10 lite
- VACSTAR digital
- VC 10.400 Stand
- RC 2 lite
- RV 10.5005 Set of hoses
- PC 1.3 Cable
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Type of cooling | vertical |
| Cooling surface | 1500 cm2 |
| Coating | Yes |
| Motor principle | DC |
| Speed range | 5 - 280 rpm |
| Reversible direction of rotation | yes |
| Lift | Motor |
| Stroke | 140 mm |
| Heating temperature range | room temp. - 180 °C |
| Heat output | 1300 W |
| Set temperature resolution | 1 K |
| Filling volume max. | 3 l |
| Timer | yes |
| Dimensions (W x H x D) | 500 x 430 x 440 mm |
| Weight | 20 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| Voltage | 220 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 1400 W |
