Product Code/SKU
Code
0025006624
Descriptions

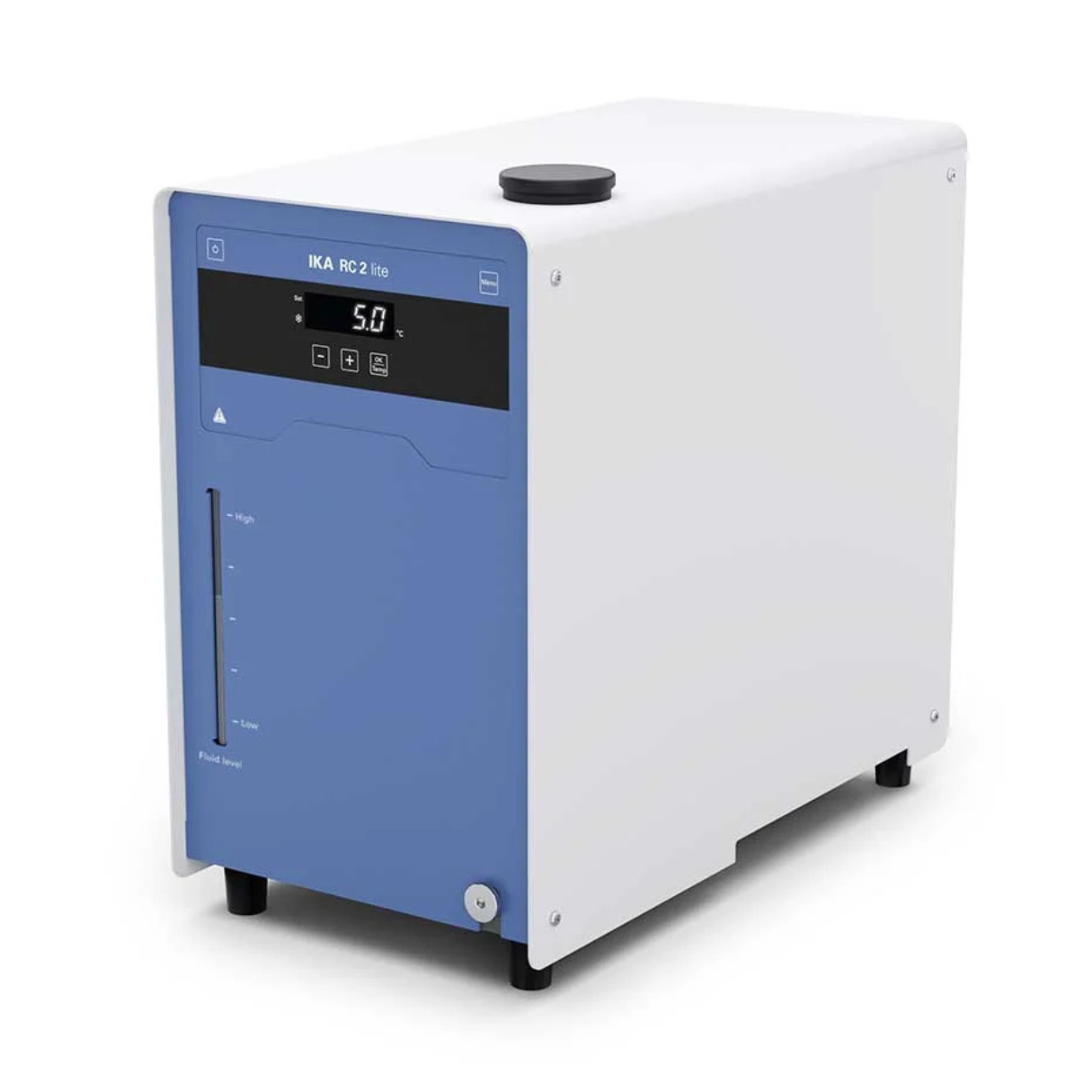

Compact recirculating chiller with powerful 400 W cooling capacity, designed for simple cooling tasks down to -10 °C.
Scope Delivery
- RC 2 lite
- Olive for DN 8 hoses (2 pcs.)
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Appliance type | Recirculating chiller |
| Class designation acc. DIN 12876 | I |
| Identification according to DIN 12876 | NFL |
| Cooling agent | R290 |
| Cooling agent quantity | 76 g |
| Cooling agent pressure max. | 21 bar |
| Cooling capacity (@20°C) | 400 W |
| Cooling capacity (@10°C) | 350 W |
| Cooling capacity (@0°C) | 250 W |
| Cooling capacity (@-10°C) | 140 W |
| Working temperature | -10 - room temp. °C |
| Operating temperature min. | -10 °C |
| Operating temperature max. (with external heating) | 70 °C |
| Temperature display | yes |
| Temperature control | PID |
| Working temperature sensor | PT1000 |
| Working temperature display | LED |
| Temperature stability DIN 12876 | ±0.5 K |
| Display resolution | 0.1 K |
| Set temperature resolution | ±0.1 K |
| Filling volume | 1 - 3.5 l |
| Pump type | Pressure- / suction pump |
| Pump pressure max. (0 liters discharge flow) | 0.35 bar |
| Pressure pump (suction side) (0 liter flow) | 0.15 bar |
| Flow rate max. (0 bar back pressure) | 18 l/min |
| Pump connection | M16x1 |
| Permissible ON time | 100 % |
| Noise level | 51 dB(A) |
| Dimensions (W x H x D) | 225 x 385 x 430 mm |
| Weight | 24.5 kg |
| Permissible ambient temperature | 5 - 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 250 W |
