Descriptions

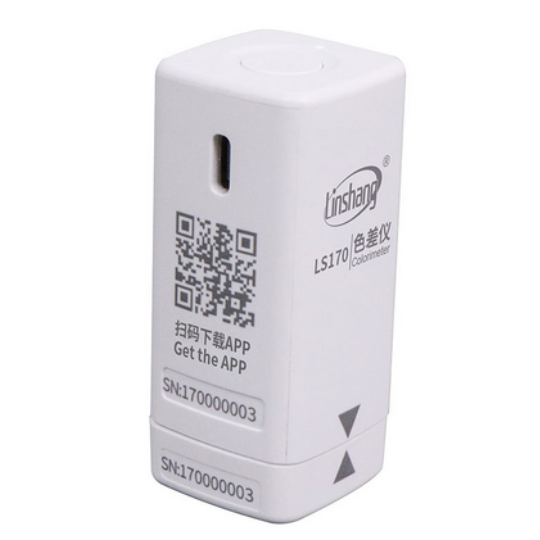

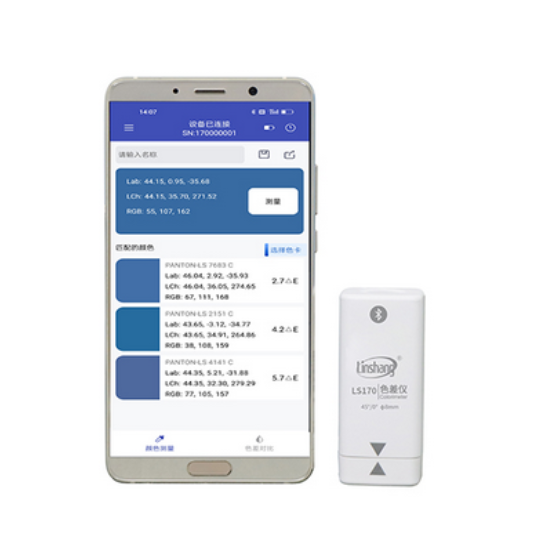

LS170 portable and smart colorimeter is designed to provide users color measurement and color comparison of materials, because color control is important. It provides Bluetooth transmission and can be used with a powerful app designed by Linshang.
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Parameter | Value |
| Illumination geometry | 45/0 (45°annular illumination, 0° viewing angle) |
| Illumination light source | Full spectrum LED light source |
| Measuring aperture | 8mm |
| Measurement conditions | Light source D65, field of view 10° |
| Measuring time | about 1s |
| Color space | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
| Color difference formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1.4:1) |
| Repeatability | Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration) |
| Dimension | 31.7×31.7×70.4mm (L*W*H) |
| Weight | about 51g |
| Power supply | Rechargeable lithium battery 3.7V@600mAh,can continuously measure 10,000 times under full power |
| Data transmission | Bluetooth |
| Charging port | USB (Type-C) |
| Operating temperature | 0~45℃, 0~85%RH (no condensation) |
| Storing temperature | -25~55℃, 0~85%RH (no condensation) |
