Product Code/SKU
Code
0020003996
Descriptions

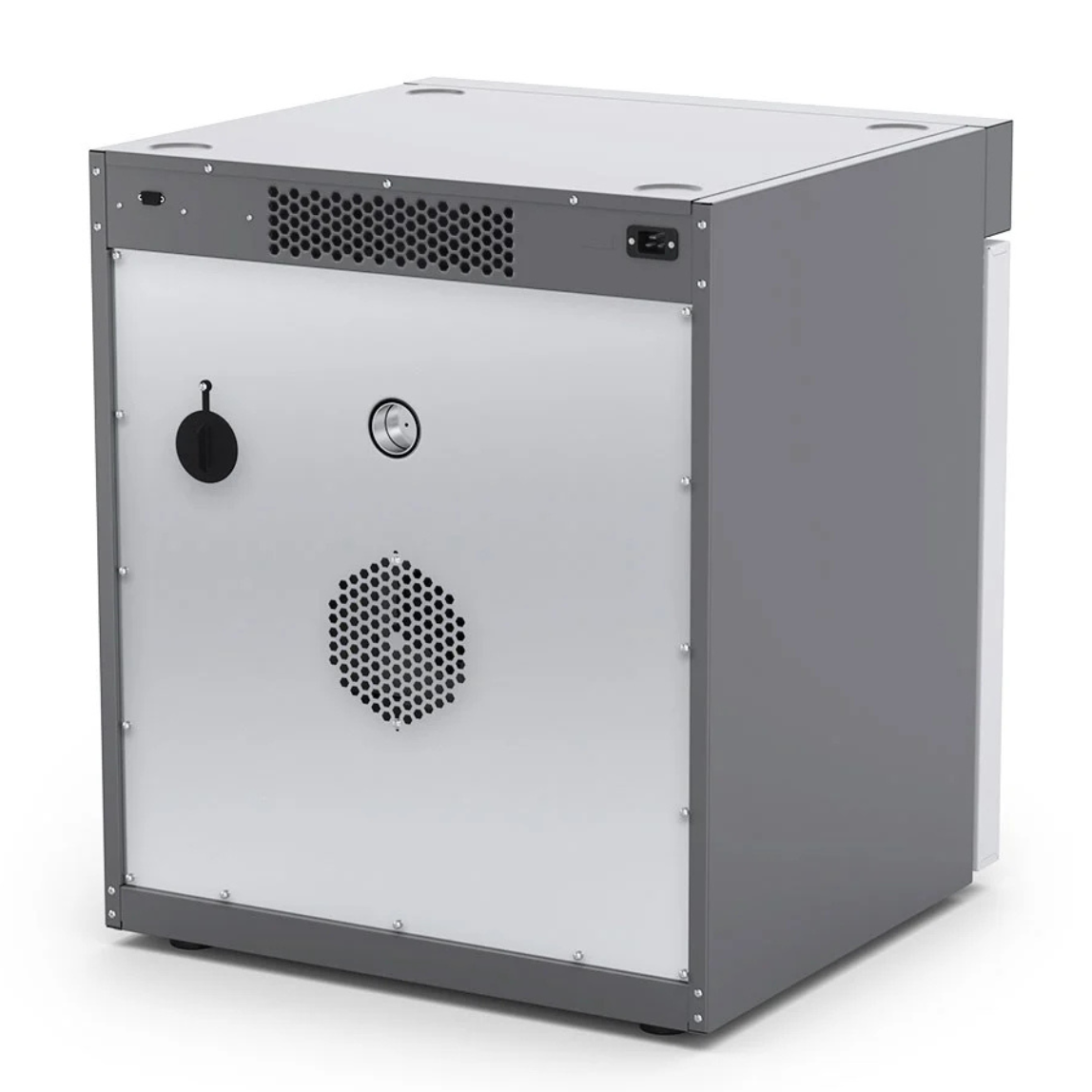

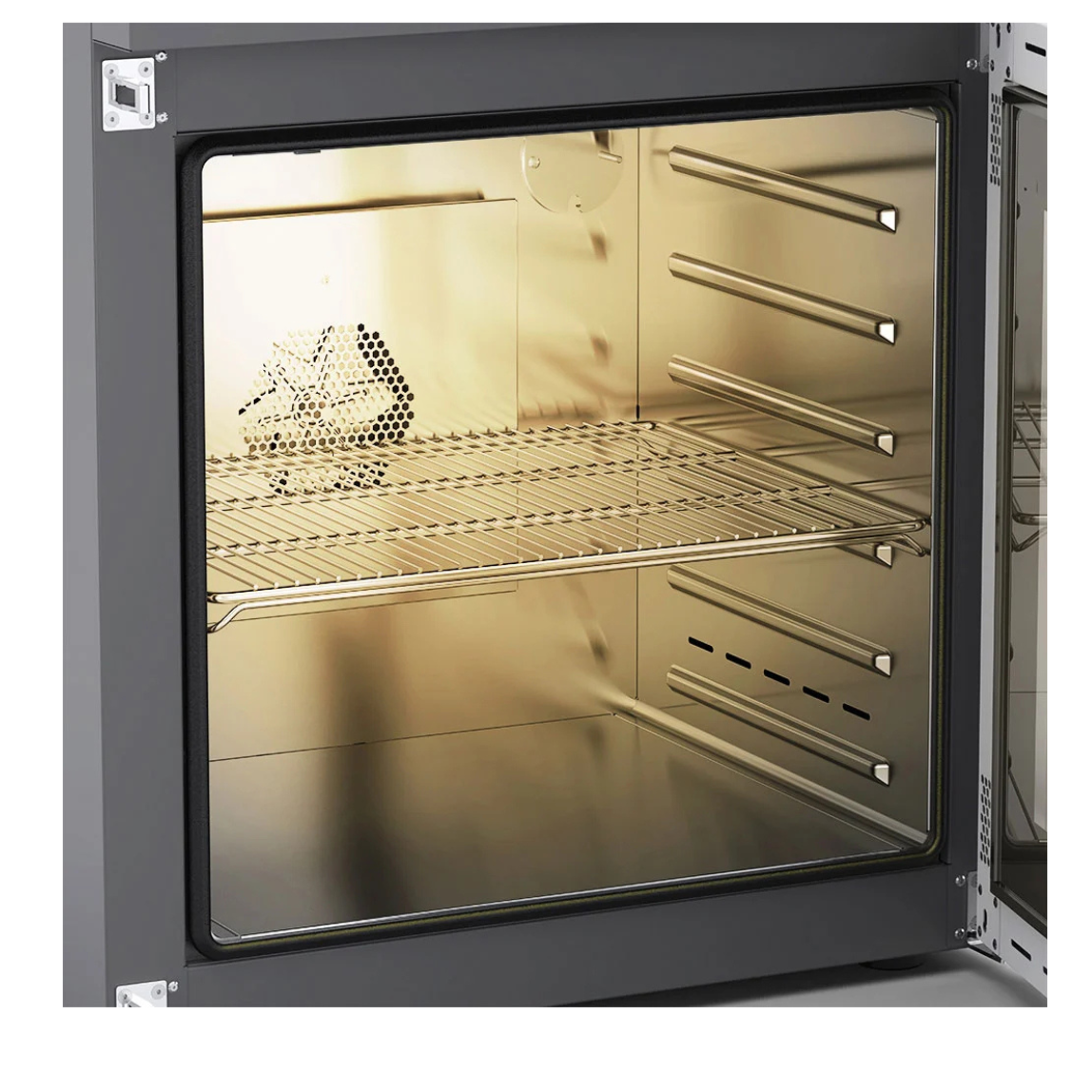

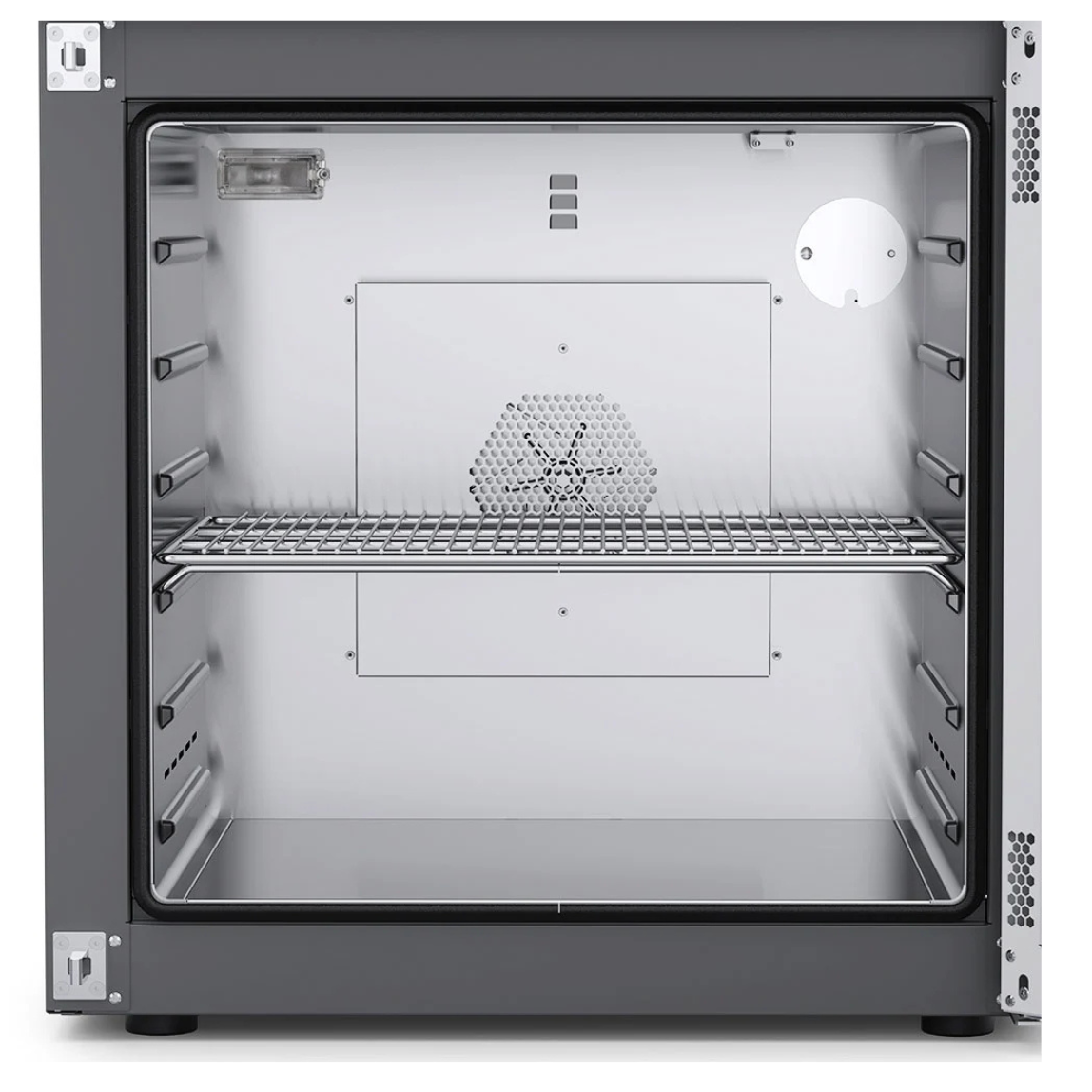

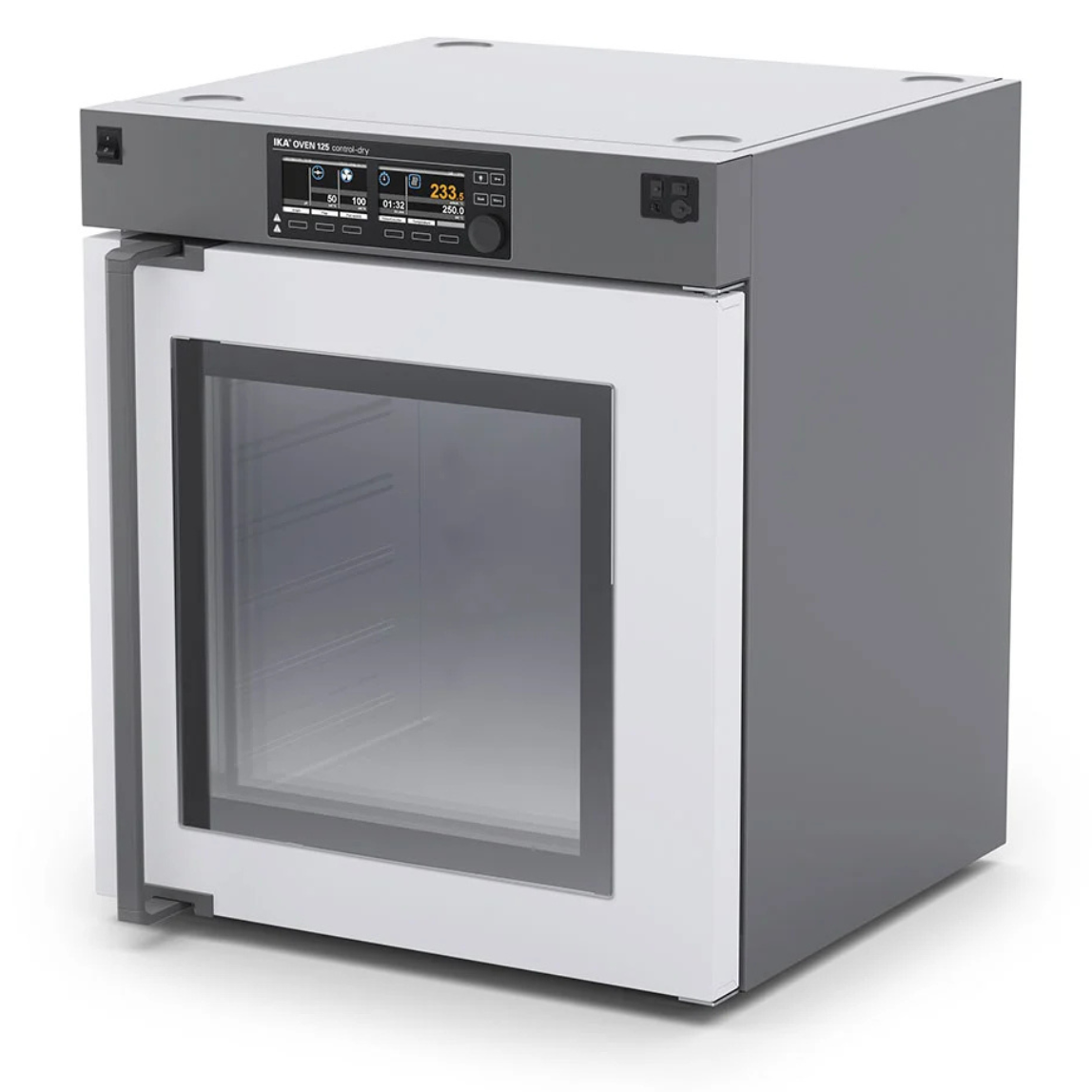

The models in the IKA Oven 125 dry series are powerful drying cabinets for temperature regulation, drying, ageing and heating tasks. the device has a very large interior of 125 l in relation to its total volume. This structure also reduces odour emissions and operating costs and ensures excellent temperature uniformity.
Scope of delivery
- IKA OVEN 125 control - dry glass Drying oven
- IO T 1.00 (2 pcs.)
- Tilt protection (2 pcs.)
- Screwdriver (for adjustment of temperature limit)
- USB A-B Cable
- Calibration certification at 160°C
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Heat output | 2400 W |
| Working temperature | room temp. +5 - 300 °C |
| Adjustable safety circuit | 50 °C - 320 °C |
| Adjustment and display resolution | 0.1 K |
| Temperature stability (150°C, center, standard door) | ±0.5 K |
| Temperature display | yes |
| Timer | yes |
| Timer display | LCD |
| Time setting range | 1 - 142560 min |
| Number of trays max. | 6 |
| Load for one tray max. | 30 kg |
| Operating area inner chamber | 550 x 525 x 450 mm |
| Total volume inner chamber | 125 l |
| Air outlet port diameter inside | 48 mm |
| Thermal safety devices according DIN 12880 | TB class 1 |
| 2. Thermal safety devices DIN 12880 | TWW Klasse 3.1 |
| Dimensions (W x H x D) | 700 x 825 x 650 mm |
| Weight | 89 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage | 220 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 2500 W |
| Power input standby | 2 W |
