Descriptions

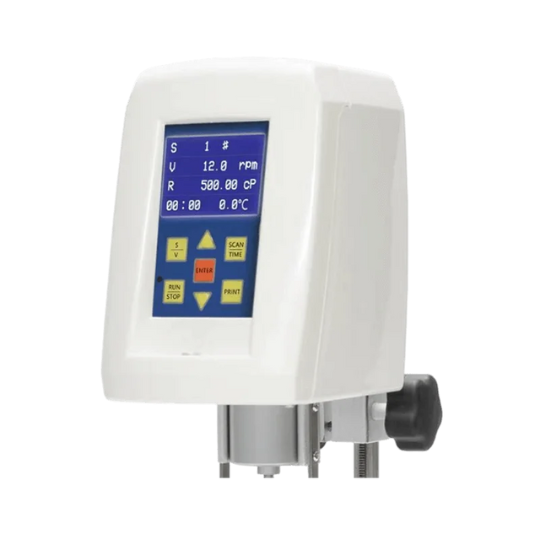

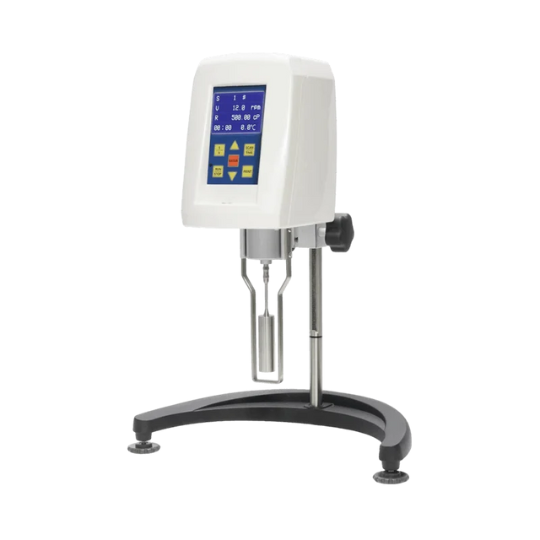

NDJ-S Series Viscometer offers high accuracy, stable rotation, and easy operation—perfect for testing various fluid viscosities in labs and factories.
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Display | High-Resolution LCD Display |
| Measurement Range (cP) | 1*-2M |
| Speed (rpm/min) | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 |
| Accuracy | ±2% (Newtonian fluid FS) |
| Repeatability | ±0.5% |
| Resolution | 0.01 cP |
| Spindle | L1, L2, L3, L4 |
| Sample Volume (ml) | 300-400 |
| Display Information | Dynamic viscosity, Temperature, Torque%, Speed, Spindle |
| Stop Mode | Manual/Automatic (timed measurement) |
| Dimensions | 300×300×450 mm (L×W×H) |
| Net Weight | 4.5 kg |
| Power Supply | Input AC100V-230V, Output DC12V 2A |
| Power | 30W |
| Optional Accessories | ULR series ultra-low viscosity adapter (0) & spindles |
| Micro printer | |
| High precision thermometer | |
| Various high-temperature water baths | |
| Upper position loading program |
