Product Code/SKU
Code
W3T324337
Descriptions

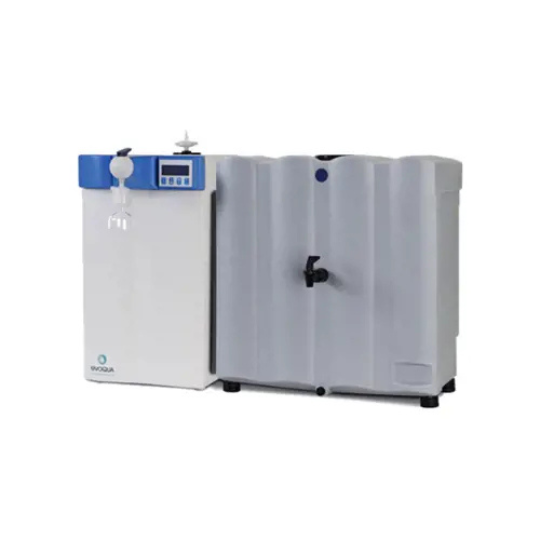

The LaboStar® PRO TWF systems produce ultrapure water straight from your drinking water supply. This equipment incorporates a pre-filtration unit and a reverse osmosis membrane. The pure water collects in an integrated tank and is finally circulated through the polishing module by a circulation pump. The user can extract either Type III water from the built-in 7 l storage tank or Type I water from the dispenser with a quality of 0.055 μS/cm, equivalent to 18.2 MΩ-cm, and TOC of between 1 and 10 ppb, depending on the system type.
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Pure water specifications : | |
| Delivery flow rate | 10 I/h |
| Ion retention rate | 96% max. |
| Bacteria retention rate | > 99 % |
| Particle retention rate | > 99 % |
| Ultrapure water specifications : | |
| Delivery flow rate | 1.2 l/min |
| Conductivity | 0.055 μS/cm |
| Resistivity | 18.2 MΩ-cm |
| TOC | 5 - 10 ppb |
| Bacteria | < 0.1* cfu/ml |
| Endotoxins | < 0.001** EU/ml |
| Particles > 0.2 μm | < 1 per ml |
| Feed water specifications : | |
| Feed water pressure | 3 - 5 bar |
| Conductivity | < 2000 μS/cm |
| Silt density index | < 12*** SDI |
| TOC | < 1000 ppb |
| Free Chlorine | < 0.5 mg/l |
| CO 2 | < 15 mg/l |
| Water temperature | 5 - 30 °C |
| Ambient temperature | 5 - 35 °C |
| Power requirements : | |
| Power consumption | 270 W |
| Power supply | 100 - 240 V/ 50 - 60 Hz |
| Weight, net | 20.0 kg |
| Weight, with packaging | 24.0 kg |
| Dimensions (H x W x D) | 535 x 400 x 520 mm |
