Product Code/SKU
Code
W3T324339
Descriptions

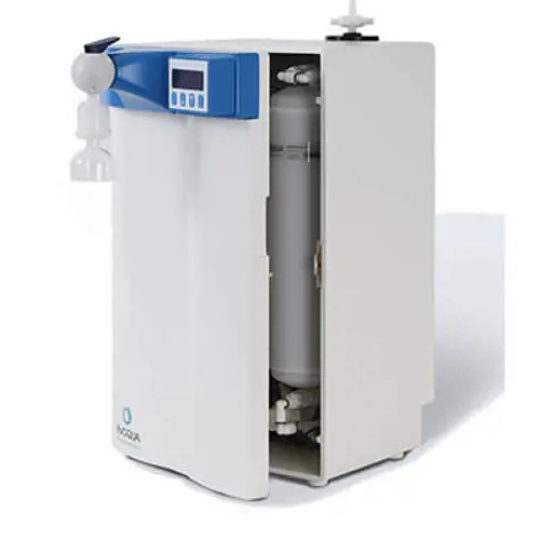

The LaboStar® PRO system is a cost effective means of producing analytical grade water. This extremely compact ultrapure water system can be used on a laboratory bench. The water produced by the system has a conductivity of 0.055 μS/cm (equivalent to 18.2 MΩ-cm) and a TOC value of < 10 ppb. The water produced by the ultraviolet (UV) version has a TOC value of 1 – 5 ppb. This water quality exceeds all relevant standards including ASTM Type I, CLSI (Clinical Laboratory Standards Institute) and ISO 3696 Type I. LaboStar® system is fed with either deionized water, distilled water or permeate from a reverse osmosis unit.
The selection of treatment materials in LaboStar™ 2 and 4 systems, along with the DI polishing modules, guarantees that the product water meets the highestquality standards. A conductivity meter in the recirculation section continually monitors the purity of the product water.
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Ultrapure water specifications : | |
| Dispense rate | 1.5 l/min |
| Conductivity at 25ºC | 0.055 µS/cm |
| Resistivity at 25ºC | 18.2 MΩ-cm |
| TOC | 5 - 10 ppb |
| Bacteria** | < 1** CFU/ml |
| Endotoxins** | < 0.001** EU/ml |
| Particulates >0.2 µm/ml | < 1 per ml |
| Feed water specifications : | |
| Pressure | 0.1 - 6 bar |
| Conductivity | < 20 µS/cm |
| Colloid index (SDI) | < 3 SDI |
| TOC | < 50ppb |
| Free Chlorine | < 0.1 mg/l |
| Fe | < 0.1 mg/l |
| CO2 | < 15 mg/l |
| Water Temperature | 5 - 30ºC |
| Temperature | 5 - 35ºC |
| Connections : | |
| Raw Water | 5/16” push-in / flex tube*** |
| Pure Water | - |
| Drain | 3/8” push-in / flex tube |
| Power requirements : | |
| Power consumption | 270 |
| Power Supply | 100-240V / 50-60Hz |
| Dimensions (HxWxD) | 535x400x410 |
