Product Code/SKU
Code
0010002471
Descriptions

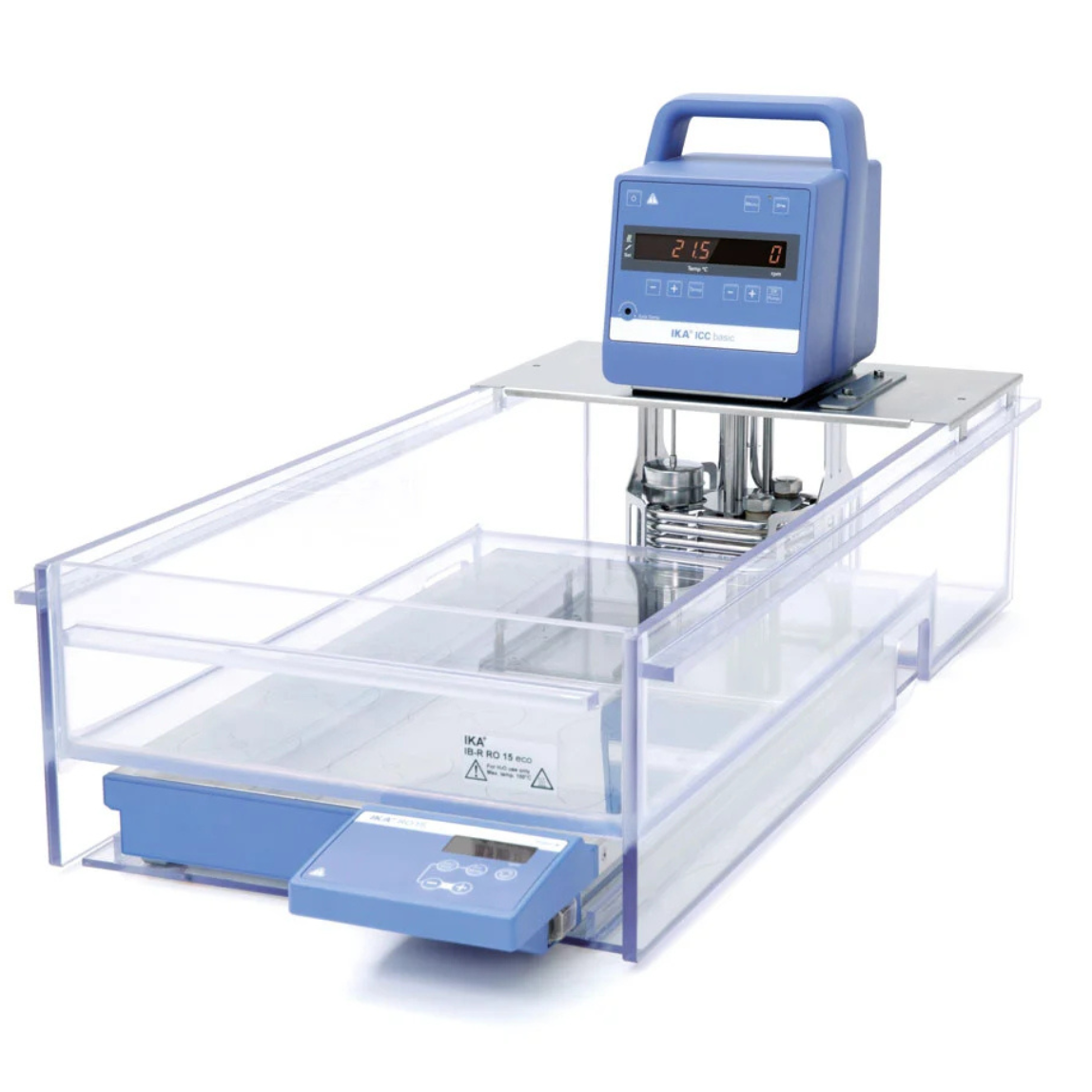

Heating Bath Circulators With Magnetic Stirrer ICC basic IB R RO 15 eco

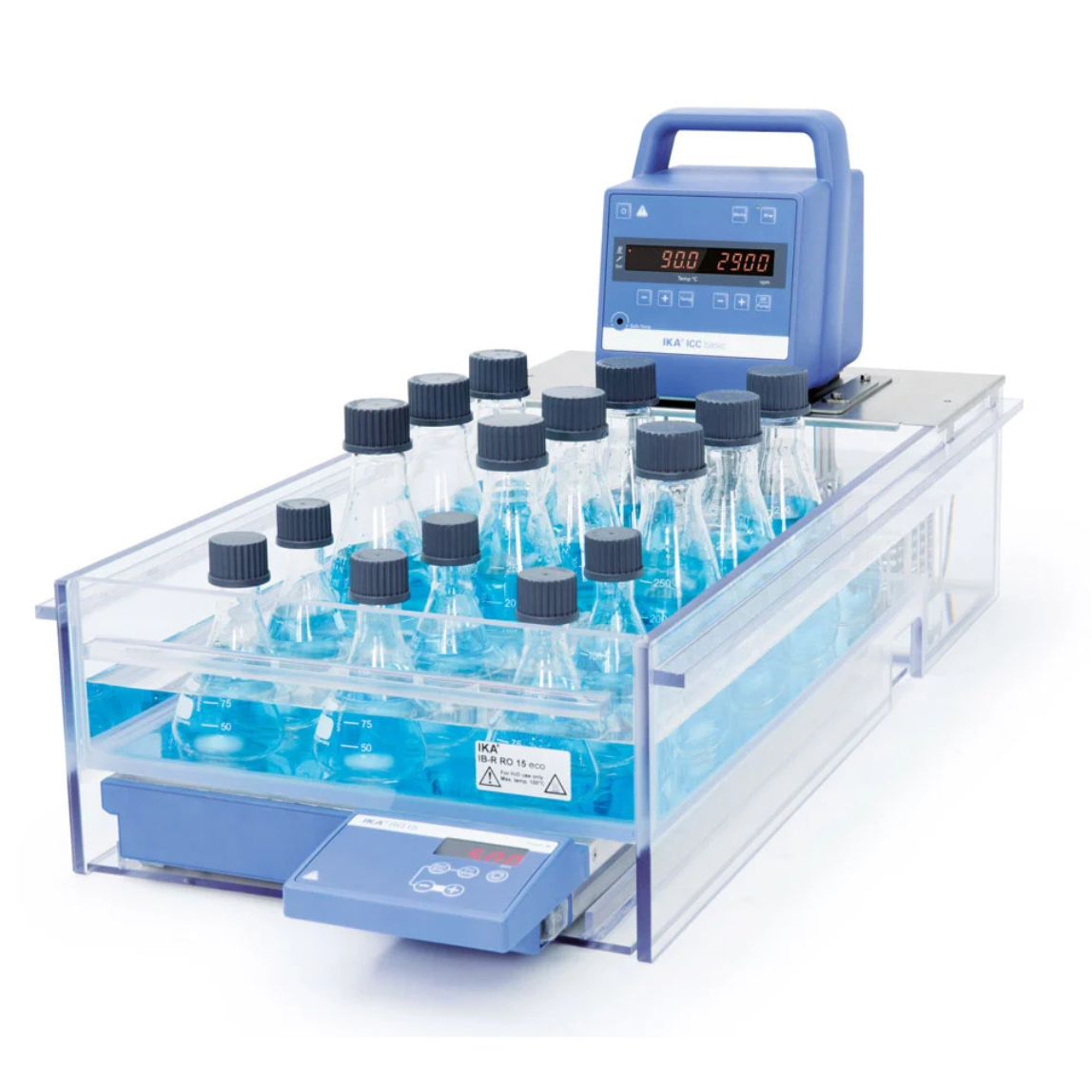

Circulating bath with 15 stirring positions for glass beakers up to 250 ml. Circulating bath with 15 stirring positions for glass beakers up to 250 ml. Max. temperature in the plastic bath (“eco” series): 80°C (water only)
Package includes
- ICC basic
- IB R RO 15 eco
- RO 15 magnetic stirrer
- BL.ICC large bridge
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Appliance type | Compact immersion circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output | 2000 W |
| Working temperature | room temp. +10K @1000rpm - 80 °C |
| Operating temperature min. (with external cooling) | -20 °C |
| Temperature display | yes |
| Temperature control | PID |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT 1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 | ±0.02 K |
| Display resolution | 0.1 K |
| Display for operation with ext. sensor | yes |
| Set temperature resolution | ±0.1 K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Adjustable safety circuit | 0 - 160 °C |
| Sub-level protection | yes |
| Over-level protection | yes |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.3 bar |
| Pressure pump (suction side) (0 liter flow) | 0.2 bar |
| Flow rate max. (0 bar back pressure) | 18 l/min |
| Bath depth min. | 150 mm |
| Width including bath | 333 mm |
| Depth including bath | 700 mm |
| Height including bath | 362 mm |
| Width bath opening | 317 mm |
| Depth bath opening | 98 mm |
| Calibration option | yes |
| Appliance fastener | clamp |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 145 x 340 x 200 mm |
| Weight | 22.23 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | Micro-USB |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 2100 W |
