Product Code/SKU
Code
0010007645
Descriptions
Vessel Packages HABITAT cell dw 0.5 double-wall for 0.5 l
HABITAT research is a smart benchtop bioreactor and fermenter from IKA, designed for both cell culture and microbial fermentation. As the first bioreactor with a lid stand, it ensures ergonomic working and a well-organized laboratory, ideal for various bioprocessing applications.
To operate HABITAT research, you only need a control unit package and a vessel package. For sensitive mammalian cell culture techniques, select the cell variant, with gassing rates from 0 - 2000 cc/min. For microbial fermentation, we recommend the ferment variant, with gassing rates of 0 - 20,000 cc/min. The photobioreactor version with LED panels is perfect for photosynthetic organisms.
Each package offers precise temperature control and pH control, essential for optimal cell growth and fermentation processes. The suffix 'cct' in each package indicates connection options for three additional sensors: turbidity, CO2, and conductivity, enhancing your ability to monitor cell culture media and fermentation progress.

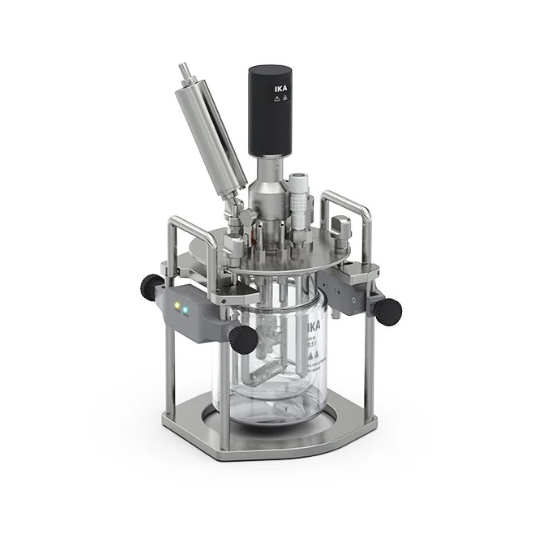

The 0.5 l vessel package for the bioreactor HABITAT research contains a 0.5 l double-walled glass vessel for cell culture applications as well as the appropriate stirring drive, including the following sensors: temperature-, pH-, DO-, level- and foam sensors. For temperature control via the double jacket we recommend one of our circulators such as the HRC basic or control.
Scope of delivery
- Stand 0.5
- HA.gv.dw.0.5 Glass vessel, double-wall, for 0.5 l
- HA.mt.s.2 Motor, small, for 0.5, 1 and 2 l
- HA.hp.s.0.5 Harvest pipe, straight, for 0.5 l
- HA.fd Feeding port (2 pcs.)
- HA.sp.m.0.5 Micro sparger, for 0.5 l
- HA.cn Condenser
- HA.ip.pi.0.5 3-pitched blade impeller, for 0.5 l
- HA.s.tm.1 Temperature sensor, for 1 l
- HA.s.ph.0.5 Hamilton pH sensor, for 0.5 l
- HA.s.do.0.5 Hamilton DO analogue sensor, for 0.5 l
- HA.s.fo Foam sensor
- HA.s.lv.1 Fill level sensor, for 0.5 to 1 l
- HA.cab.dw Cable & tube set, for double-wall vessels
- HA.sf.250 Sample flask, 250 ml (4 pcs.)
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Reactor | Cell Growth |
| Volume | 0.5 l |
| Type | double wall |
| Multi use | yes |
| Autoclavable | yes |
| Inner diameter | 90 mm |
| Ratio = height / inner diameter | 1.67 |
| Useable volume min. | 0.25 l |
| Useable volume max. | 0.8 l |
| Reactor vessel material | borosilicate glass |
| Reactor lid material | stainless steel 1.4404 |
| Net weight reactor vessel | 0.71 kg |
| Net weight reactor assembled | 6.77 kg |
| Number lid ports | 10 |
| Lid ports (Baffle) | 1 |
| Lid ports (pH) | 1 |
| Lid ports (Reserve) | 0 |
| Lid ports (Condenser) | 1 |
| Lid ports (Cooling Finger) | 0 |
| Lid ports (Inoculation) | 0 |
| Lid ports (Harvest Pipe) | 1 |
| Lid ports (Sparger) | 1 |
| Lid ports (Feed) | 2 |
| Lid ports (4in1) | 0 |
| Lid ports (Temperature) | 1 |
| Lid ports (DO) | 1 |
| Lid ports (Level) | 1 |
| Material in contact with medium | AISI 316L, borosilicate glass 3.3, silicone USP class VI |
| Motor coupling | shaft feedthrough |
| Harvest pipe outer diameter | 6 mm |
| Harvest pipe inner diameter | 4 mm |
| Harvest pipe design | straight |
| Harvest pipe, height adjustable | yes |
| Feeding port, outer diameter | 4.5 mm |
| Feeding port, inner diameter | 2 mm |
| Feeding port, amount | 4 |
| Sparger | Micro sparger |
| Sparger, outer diameter | 8 mm |
| Sparger, inner diameter | 6 mm |
| Sparger pore size | 5 μm |
| Stirrer design | Centrifugal stirrer, 2-bladed |
| Stirrer diameter 3 pitchblade | 34 mm |
| Ratio = stirrerdiameter 3 blade / inner diameter reactor | 0.38 |
| Stirrer quantity | 1 |
| Condenser | yes |
| Condenser, connection threat | M16x2 |
| Type of cooling | Vertical condenser |
| Condenser Temperature min. | 5 °C |
| Temperature min. / Condenser with Peltier | 15 °C |
| Temperature min. / Condenser with water cooling | 5 °C |
| Filtertype | sterile filter |
| Filtermaterial | PTFE reinforced with PP |
| Filter housing material | PP |
| Pore size | 0.22 μm |
| Filter heater | yes |
| Spin filter | 40 μm |
| Baffle | Accessory |
| Temperature measuring | yes |
| Working temperature sensor | PT1000 |
| pH sensor | yes |
| pH sensor connection threat | PG 13.5 |
| pO2 sensor | yes |
| pO2 sensor connection threat | PG 13.5 |
| Level sensor | IKA HA.s.lv |
| Foam sensor | IKA HA.s.fo |
| Turbidity sensor | Accessory |
| Conductivity sensor | Accessory |
| CO2 sensor | Accessory |
| Stirring motor | yes |
| Speed range | 1 - 1400 rpm |
| Flowrate Air min. | 10 cc/min |
| Flowrate Air max. | 2000 cc/min |
| Flowrate O2 min. | 10 cc/min |
| Flowrate O2 max. | 2000 cc/min |
| Flowrate N2 min. | 10 cc/min |
| Flowrate N2 max. | 2000 cc/min |
| Flowrate CO2 min. | 10 cc/min |
| Flowrate CO2 max. | 2000 cc/min |
| Dimensions (W x H x D) | 185 x 365 x 185 mm |
