Product Code/SKU
Code
0003992000
Descriptions

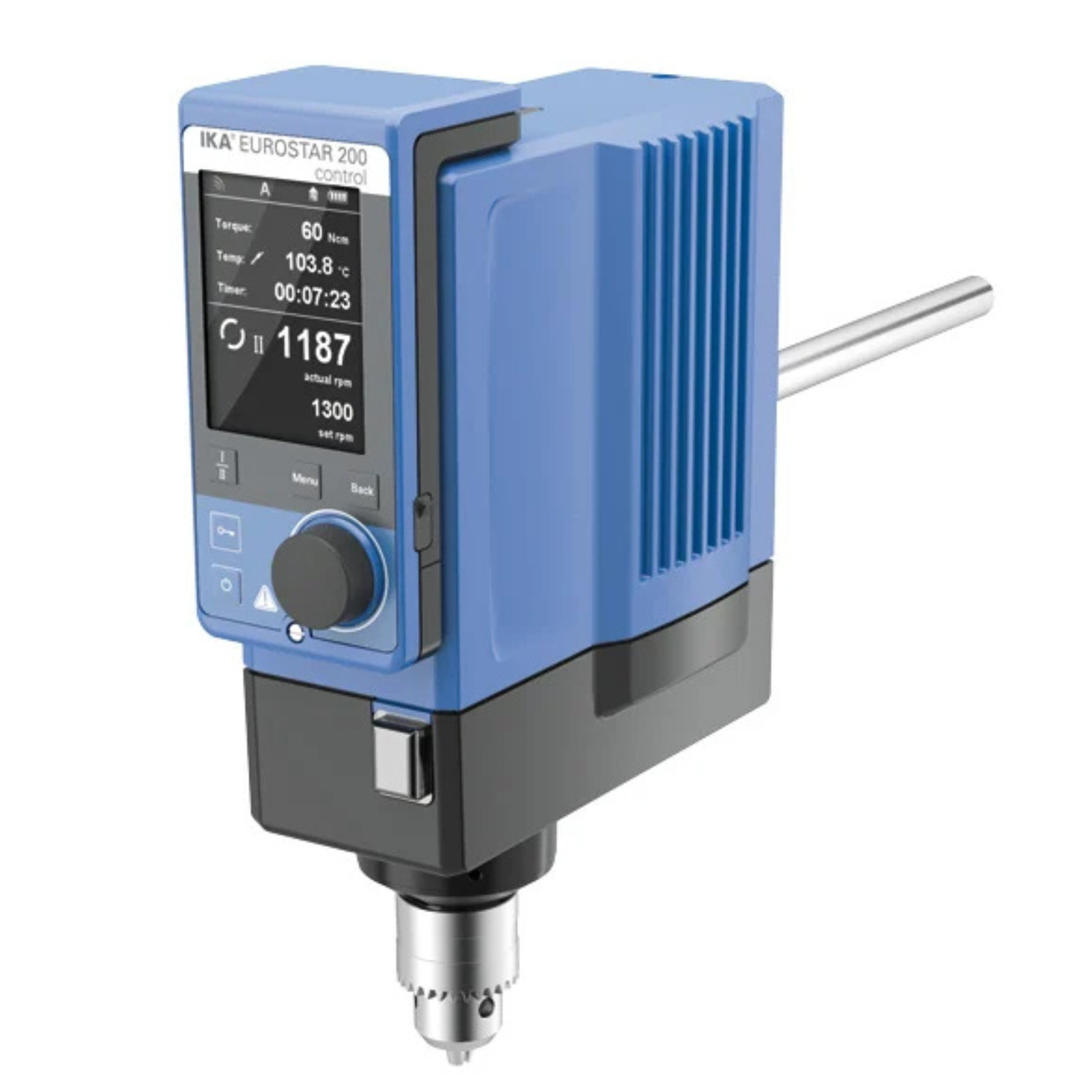

Powerful Overhead Stirrers for Universal Stirring Tasks EUROSTAR 200 control
Extremely powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100 l (H2O). It is designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/6 - 2000 rpm (two speed ranges).
Scope of delivery
- EUROSTAR 200 control
- H 67.60 Temperature sensor, stainless steel
- WH11
- OS 1.0 WiCo power supply unit
- USB Cable - USB A to Micro-B, 2 m
- USB cable micro A – micro B 2.0
- Screw driver
- Protective cover for WiCo contact
- Chuck key
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Stirring quantity max. per stirring position (H2O) | 100 l |
| Motor rating input | 135 W |
| Motor rating output | 84 W |
| Motor principle | Brushless DC |
| Speed display | TFT |
| Speed range | 0/6- 2000 rpm |
| Intermittent operation | yes |
| Viscosity max. | 100000 mPas |
| Output max. at stirring shaft | 84 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 200 Ncm |
| Torque I max. | 200 Ncm |
| Torque II max. | 40 Ncm |
| Speed range I (50 Hz) | 6 - 400 rpm |
| Speed range II (50 Hz) | 30 - 2000 rpm |
| Speed range I (60 Hz) | 6 - 400 rpm |
| Speed range II (60 Hz) | 30 - 2000 rpm |
| Speed adjustment | stepless |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement n > 300rpm | ±1 % |
| Deviation of speed measurement n < 300rpm | ±3 rpm |
| Stirring element fastening | chuck |
| Connection for ext. temperature sensor | PT1000 |
| Temperature display | yes |
| Plug-in coupling (Ø) | 10 mm |
| Chuck range diameter | 0.5 - 10 mm |
| Hollow shaft, inner diameter | 10.3 mm |
| Hollow shaft (push-through - when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Torque display | yes |
| Speed control | electronic |
| Nominal torque | 2 Nm |
| Torque measurement | trend |
| Deviation of torque measurement I | ±20 Ncm |
| Deviation of torque measurement II | ±6 Ncm |
| Timer | yes |
| Timer display | TFT |
| Time setting range | 1 - 6000 min |
| Temperature measuring range | -10 - +350 °C |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K |
| Limit deviation temperature sensor | ≤ ± (0.15 + 0.002xITI) KHousing material : alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 91 x 297 x 231 mm |
| Weight | 4.9 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Protection class according to DIN EN 60529 | IP 40 |
| RS 232 interface | yes |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 130 W |
