Product Code/SKU
Code
0004028600
Descriptions

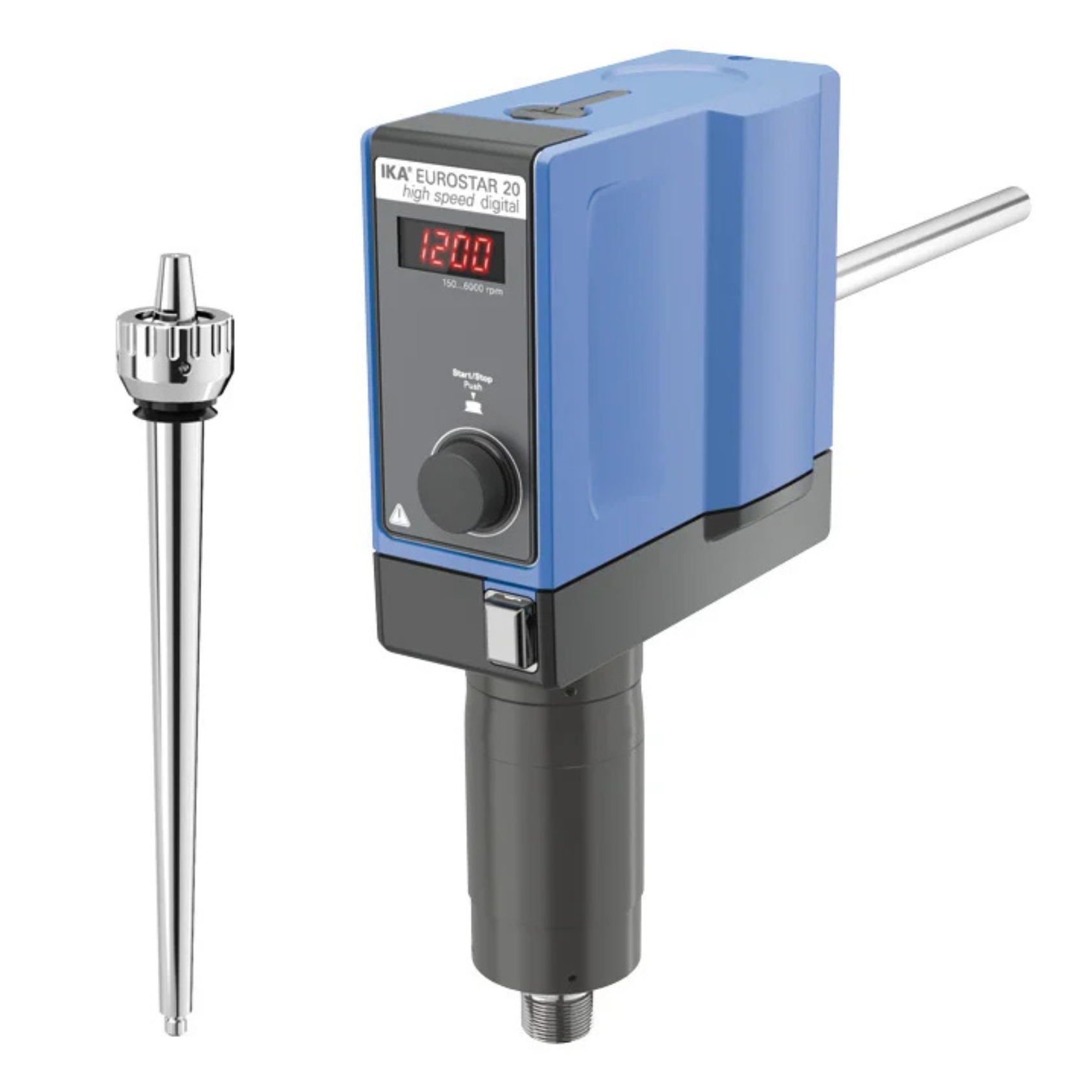

High Speed Overhead Stirrers EUROSTAR 20 high speed digital
High speed laboratory stirrer designed for intensive stirring tasks for quantities up to 20 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/150 - 6000 rpm. The included precision shaft is 280 mm long and has a maximum immersion depth of 220 mm.
Scope of delivery
- EUROSTAR 20 high speed digital
- R 6000 precision shaft
- Open-end wrench
- Hook spanner
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Stirring quantity max. per stirring position (H2O) | 20 l |
| Motor rating input | 176 W |
| Motor rating output | 125 W |
| Motor principle | Brushless DC |
| Speed display | 7 segment LED |
| Speed range | 0/150 - 6000 rpm |
| Viscosity max. | 10000 mPas |
| Output max. at stirring shaft | 125 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 20 Ncm |
| Speed adjustment | stepless |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement n > 300rpm | ±1 % |
| Deviation of speed measurement n < 300rpm | ±3 rpm |
| Stirring element fastening | special output shaft |
| Fastening on stand | extension arm |
| Extension arm diameter | 16 mm |
| Extension arm length | 220 mm |
| Speed control | electronic |
| Nominal torque | 0.2 Nm |
| Housing material | alu-cast coating / thermoplastic polymer |
| Dimensions (W x H x D) | 86 x 325 x 208 mm |
| Weight | 5.3 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 42 |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power input | 176 W |
