Product Code/SKU
Code
1340-6602
Descriptions

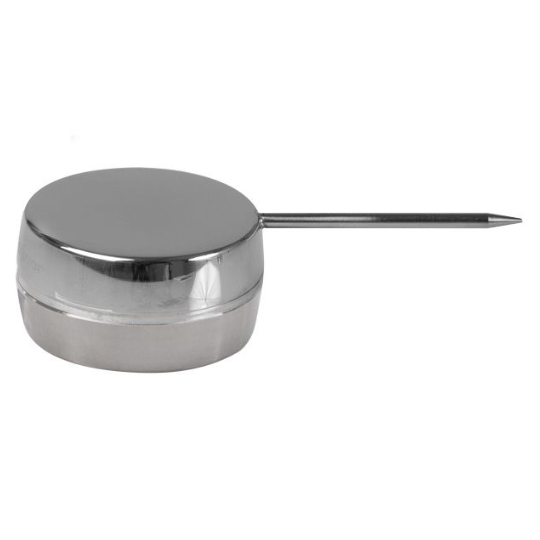

Robust data logger for regular checks in canning factory. This data logger can be used universally. The logger is often used in the following areas for temperature measurement. The logger is used for pasteurization control, especially in small containers. The logger needle is inserted into the container from the outside. The data logger is often used to check sterilization as part of quality assurance in production. Due to its large measuring range, the data logger is often used for mapping the temperature in warehouses, refrigerators, freezers, incubators and many more.
Benefits:
- wireless measurement
- Versatile
- large measuring range
Applications:
- Food Safety
- Pasteurization Control
- PU value determination
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Operating temperature | -55 °C … +150 °C |
| Measurement range | -55 °C … +150 °C |
| Accuracy | ± 0.5 °C (-55 °C … -40 °C) |
| ± 0.2 °C (-40 °C … 0 °C) | |
| ± 0.1 °C (0 °C … +150 °C) | |
| Resolution | 0.01 °C |
| Data memory | 27,840 measurements |
| Sensor | PT1000, class A |
| Measurement interval | 1 s … 24 hours |
| Real-time data transmission | No |
| Storage temperature | -20 °C … +70 °C |
| Measurement modes | endless measurement |
| Measure upon starttime | |
| Start immediately until end of memory | |
| Start- / Stop measurement Battery Lithium, 3.6 V, User-replaceable | |
| Dimensions (Ø x H) | 48 mm x 24 mm |
| Weight app | 90 g |
| Housing material | 316 L stainless steel / PEEK |
| Protection class | IP68 |
| Factory Calibration Certificate | -20 °C, 0 °C, +60 °C and +134 °C |
