Product Code/SKU
Code
0020113434
Descriptions

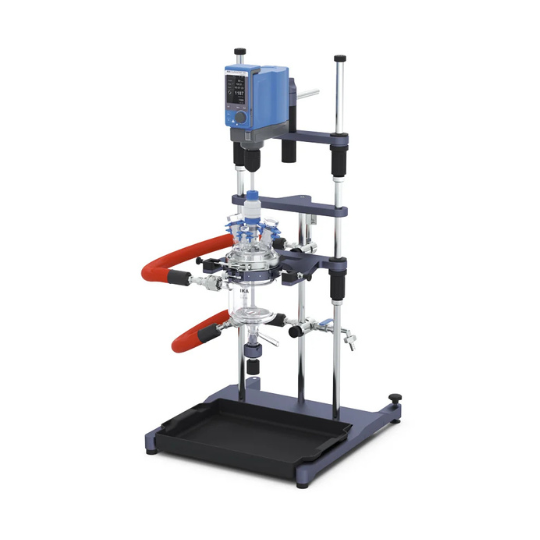

EasySyn is the reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale. Our EasySyn 500 Advanced package comprises a complete reactor system for use in the laboratory. You can also control it with the IKA lab software labworldsoft® 6 to automate all processes. The high quality of the used materials allows operation at temperatures from -50 to 200 °C and up to a vacuum of 3 mbar.
Scope of Delivery
- SY stand
- SY 500 D Reactor vessel
- SY clamp 100
- SY clamp ring 100
- SY O-ring 100
- SY 100.1 Reactor lid
- R 4011 SY Propeller stirrer
- EUROSTAR 100 control
- SY guide
- R 60 Keyless chuck
- LT 5.40 Draining set
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Volume | 0.5 l |
| Flange dimension | DN100 |
| Vacuum application | yes |
| Working temperature | -50 - 200 °C |
| Useable volume min. | 30 ml |
| Useable volume with temperature probe min. | 260 ml |
| Attainable vacuum | 3 mbar |
| Torque max. at stirring shaft | 100 Ncm |
| Dimensions (W x H x D) | 500 x 950 x 580 mm |
| RS 232 interface | yes |
| USB interface | Micro-USB |
