Descriptions

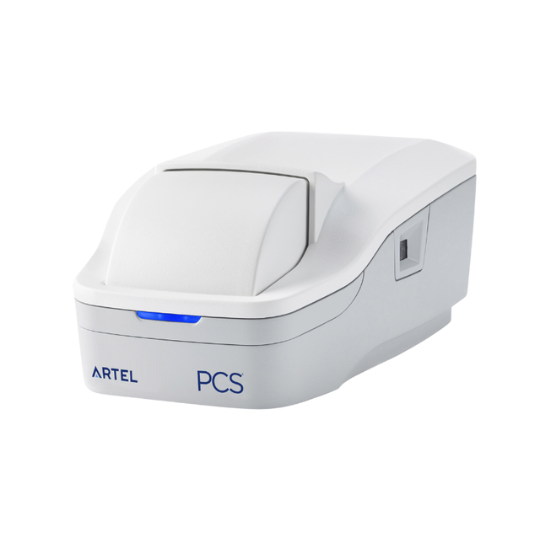

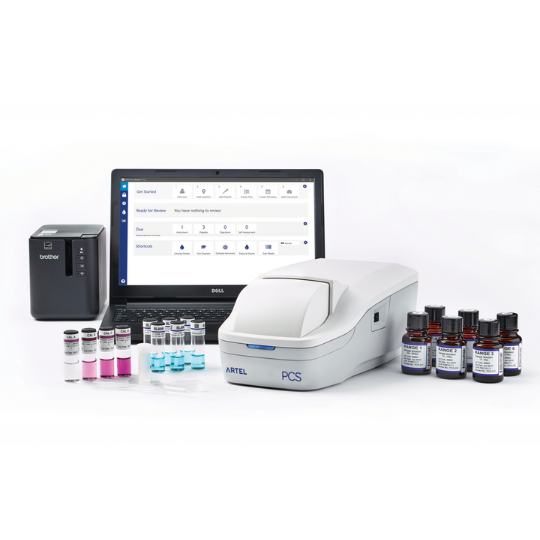

Artel PCS Pipette Calibration System
Pipettes are the most frequently used instruments in the laboratory. Their performance is key to every sample dispense and dilution, and is critical for generating reliable data. The PCS provides confidence in data integrity with scheduled pipette calibrations, interim performance verifi cations, complete documentation and pipette inventory management, and it’s an ideal tool for standardizing pipetting technique and assessing operator competency.
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Specifications : | |
| Time Requirements | 10 data points < 3 minutes |
| Volume Range | 0.1 µL to 5000 µL |
| Uncertainty (Inaccuracy) | 0.6% |
| Random Error (Imprecision) | 0.3% |
| Artel PCS Instrument : | |
| Size | (W x L x H): 22.4 cm x 33.0 cm x 14.7 cm (8.8” x 13.0” x 5.8”) |
| Weight | 5.7 kg (12.5 lbs.) |
| COM port | USB |
| Built in scanner | Reads 2D reagent barcodes |
| Operational Temperature | 15 °C to 30 °C |
| Relative Humidity | 10% to 90%, non-condensing |
| Wavelength selection | 520 nm and 730 nm |
| Electrical Power Requirements | Voltage: 90 – 260 VAC Frequency: 50 – 60 Hz Current: 2 A maximum |
| Warranty | 1 year |
| PCS Computer : | |
| Processor | x64 Processor: 2.4 GHz (recommended 4 or more cores) |
| Memory | 8 GB (recommended min. 16GB) |
| I/O Ports | 2 USB Connectors |
| Network | Gigabit Ethernet or 802.11n wifi |
| Storage | 40 GB of hard drive space |
| Supported Operating Systems | Windows® 10 or Windows® 11 |
| SQL Server | 2019, 2017, 2016 and 2014 in Express, Standard, and Enterprise Editions |
