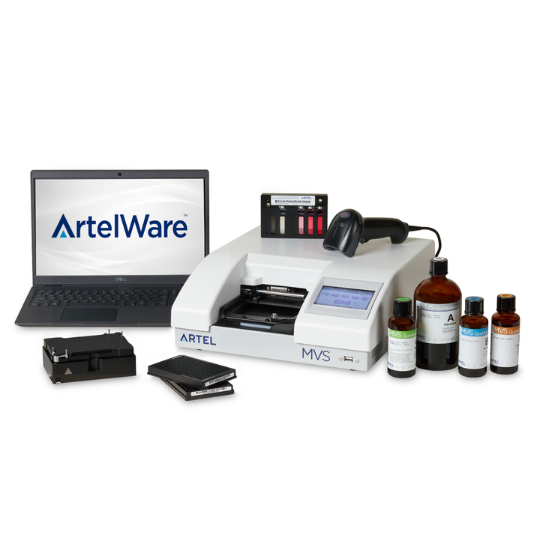

Artel MVS Multichannel Verification System

Descriptions

Artel MVS Multichannel Verification System

Without knowing the exact volume transferred at each step of an assay, the concentration of species in solution is unknown, potentially leading to unreliable results, delays, and cost overruns. Utilization of the Artel MVS for performance verification can prevent problems, bolster laboratory productivity, and provide confidence in the integrity of data.

Show All

*Please click "Request Form" for complete information regarding Prices and Stock.

Technical Specifications

System Performance with 96 well MVS Verification Plate :
Time Requirements	< 5 Minutes
Tip Configurations	1, 2, 4, 6, 8, 12, and 96
Traceable Volume Range	0.1000 - 350.0μL
Operating Volume Range	0.0001 - 350 μL
Operating Temperature	15 - 30° C
Traceability to national & international standards	Yes

System Performance with 384 well MVS Verification Plate :
Time Requirements	< 10 Minutes
Tip Configurations	1, 8, 12, 16, 24, 96, and 384
Traceable Volume Range	0.0100 - 55.00μL
Operating Volume Range	0.0001 - 55.00μL
Operating Temperature	15 - 30° C
Traceability to national & international standards	Yes

MVS Computer (recommended minimum requirements) :
Processor	x64 Processor: 2.4 GHz (recommended 4 or more cores)
Memory	4 GB (recommended min. 16GB)
I/O Ports	3 USB Connectors
Network	Gigabit Ethernet or 802.11n wifi
Storage	40 GB of hard drive space
Supported Operating Systems	Windows® 10 or Windows® 11
SQL Server	2019, 2017, 2016, and 2014 in Express, Standard and Enterprise Editions

ARTEL 800TSNB PLATE READER :
Dimensions (DxWxH)	41.9 x 38.1 x 17.8 cm
Weight	9.97 kg
Display	Touch screen
Light source	Tungsten gas filled bulb
Wavelength selection	Metal oxide interference filters Center wavelengths: 520.2 nm (bandwidth at half-max = 6.2 nm) 730.5 nm (bandwidth at half-max = 10 nm)
Additional filters	405 nm, 450 nm, 490 nm
COM Port	USB
Power requirements	Voltage: 90 – 260 VAC
	Frequency: 50 – 60 Hz
	Current: 2 A maximum

MVS TITER PLATE SHAKER :
Dimensions (DxWxH)	142 x 99 x 48.2 mm
Amplitude	2.0 mm orbital
Shaking speed range	200 to 3000 rpm
Power requirements	External power supply 100-240 V AC, 50-60 Hz

MVS CALIBRATOR PLATE :
Storage Temperature	15 - 25 °C in protective case out of direct light
Operation Temperature	15 - 30 °C
Recalibration	12 month factory recalibration required
Shelf life	1 year
