Product Code/SKU
Code
0004020700
Descriptions

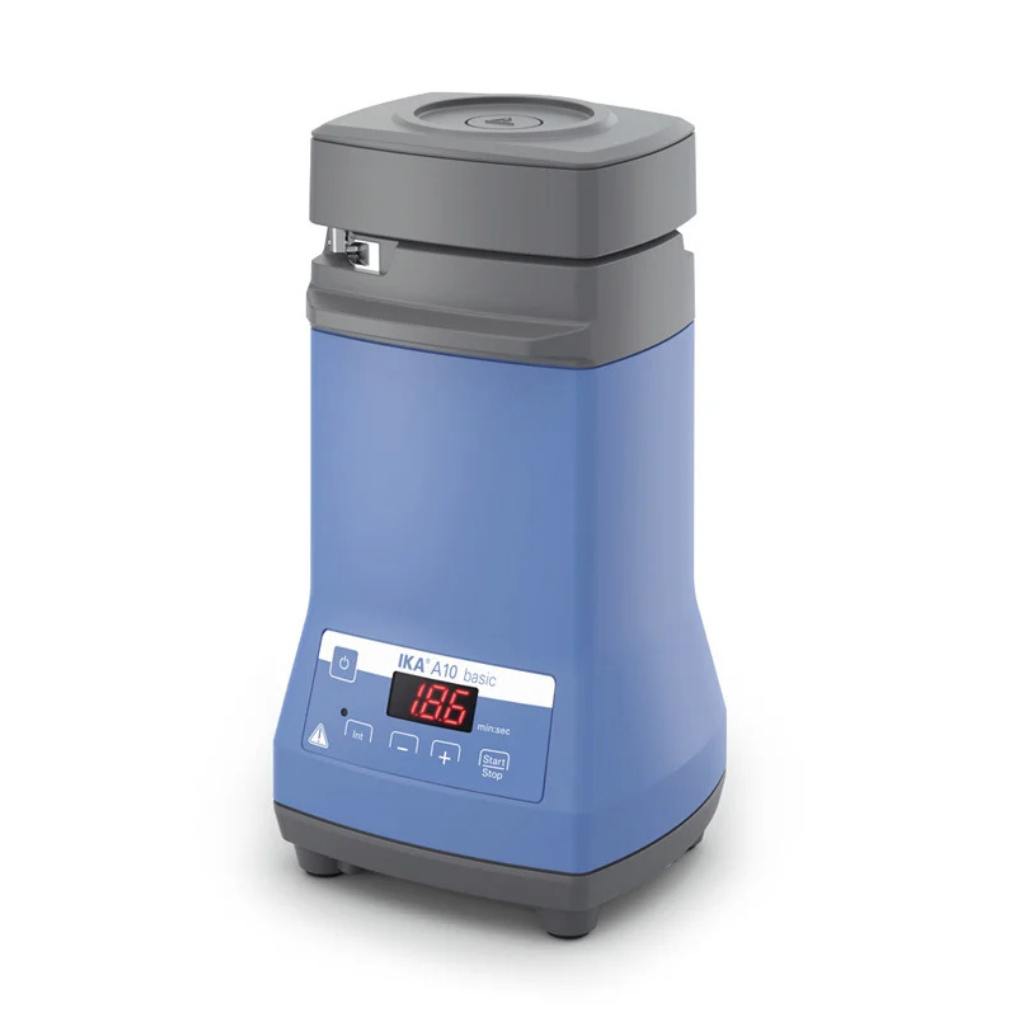

Batch Milss A 10 basic
The redesigned batch mill grinds hard, brittle, soft and fibrous materials for volumes up to 50 ml. Because samples may be embrittled directly in the grinding chamber; tough, oily and aqueous samples can also be grinded.

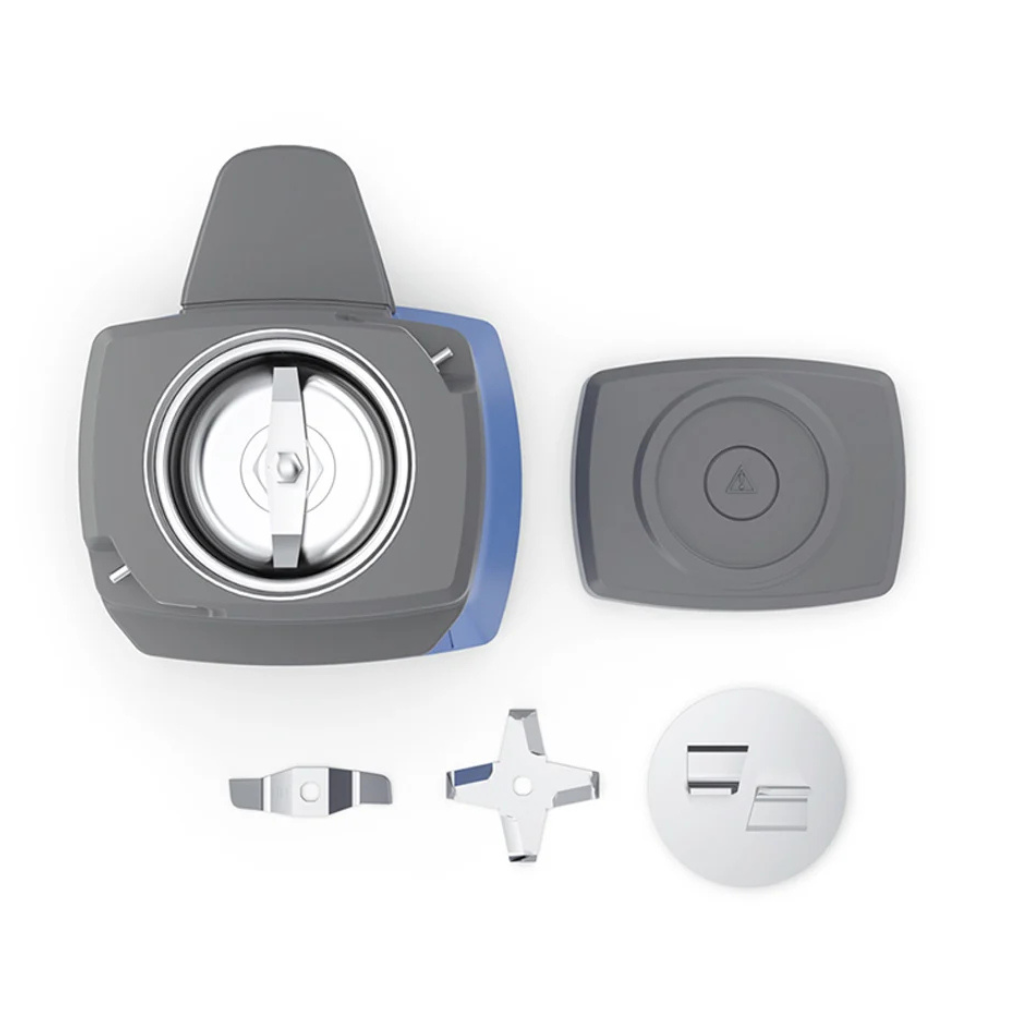

Scope of delivery
- A 10 basic
- A 10.1 Stainless steel cutter
- A 10.4 Grinding chamber reduction
- Clips for cooling hose (2 pcs.)
- Felt rings (2 pcs.)
- Tool kit
*Please click "Request Form" for complete information regarding Prices and Stock.
Technical Specifications
| Process type | batch |
| Operating principle | cutting/impact |
| Motor rating input | 300 W |
| Motor rating output | 240 W |
| Speed max. | 25000 rpm |
| Speed deviation | ±500 rpm |
| Circumferential speed max. | 73 m/s |
| Useable volume max. | 50 ml |
| Feed hardness max. | 5 Mohs |
| Feed grain size max. | 6 mm |
| Material beater/cutter | stainless steel 1.4034 |
| Material milling chamber | stainless steel 1.4301 |
| Power-ON time | 5 min |
| Power-OFF time | 10 min |
| Milling chamber, can be cooled with water | yes |
| Mill feed can be cooled in milling chamber with dry ice | yes |
| Dimensions (W x H x D) | 130 x 250 x 145 mm |
| Weight | 3.13 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 41 |
| Voltage | 220 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 300 W |
